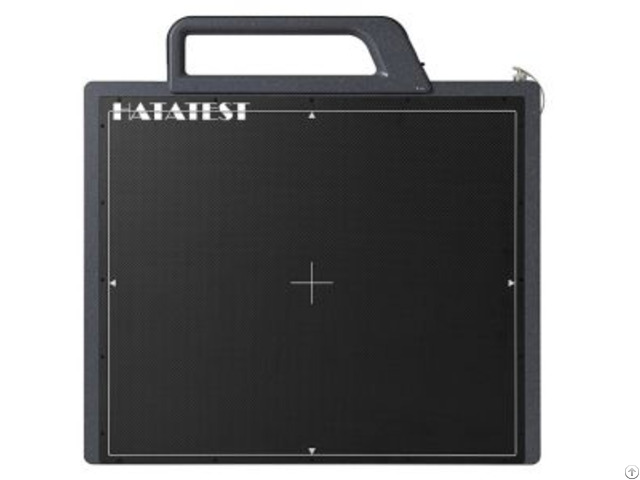

Ht1012jw Industrial Digital Radiography System - China
price: 15000.00 Dollar US$
HT1012JW DR system consists of one set of industrial DR panel detector and one set DR software .
HT1012JW wireless Portable Digital Radiographic system is a real industry DR system for NDT .
HATATEST HT1012JW DR equipment flat panel detector is with the advanced, friendly, powerful, intelligent DR software.
HATATEST HT1012JW NDT Flat panel detector is produced based on ISO 17636 specification The Feature of HT1012JW Digital Detector Array (DDA) are:
Scintillator: Gd2O2S : Tb
Active Area: 260 x 325 mm
Active Pixels: 2, 048 x 2, 560px
Pixel Pitch: 127㎛
Limiting Resolution: 3.9 lp/mm
A/D Conversion: 14/16 bits
Window Time Min: 13.1 ms, Max.
120 sec.
Interface(1)Wired : 1Gbps Ethernet;(2)Wireless : 802.11 a/g/n Wireless LAN
Energy Range: 40~330 kVp
Dimension: (W x L x H)320 x 385 x 18 mm
Weight: 3.3kgs, Not incl.
handle, incl.
battery
Company Contact:
- Posted By: HATATEST TECHNOLOGY LIMITED
- Phone: 0086 371 63317616
- Address: 15 FLOOR, 3#, MUHUA-LONG ZI HU, ZHENGZHOU,CHINA, Zhengzhou , Henan , China
- Email:
- Website: http://dr-hatatest.com
Published date: December 11, 2019 - Modified date: December 18, 2019
- Business Description: 1 .
Worldwide Unique technology, save more than 30% cost for NDT
2 .
HATATEST ranks first in the field of portable DR nondestructive testing in China.
3 .
HATATEST products have a market share of more than 70% in China (more than twice the total sales of the 2nd to 10th places).
4 .
Certified supplier of famous Group as CNPC, Sinopec, China Aerospace and so on
5 .
Chinese first NDT instrument R & D Cente
6 .
Designated equipment for China NDT qualification examination
