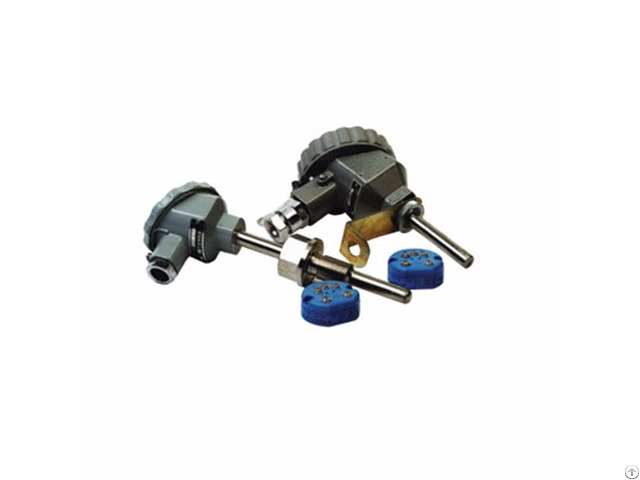

Insert Temperature Transmitter - China
price: 41.00 Dollar US$
Insert Temperature Transmitter Description:
CJBT-I utlizes specific temperature module, can modify kinds of thermocouple, hot resistance, then output standard analog signals.
It is high accuracy, strong anti-interference, anti-explosion, heat resistance, anti-knock.
Features:
Wide measure range
All material is Stainless steel Various Pressure port type Protection Grade: IP65 Application: Measure temperature of gas or liquid which is compatible to 316L stainless steel
Used in field of petroleum, chemical industry, Metallurgy, Electricity, hydrology etc.
Performance Parameters:
Measure Range: -55～1200℃
Accuracy: ±0.5%(typical) ±1.0%(MAX)
Long term stability: ±1.0%F.
S/year
Working temperature: -20℃~80℃
Power Supply: 15～30VDC
Output signals: 4～20mA 1～5VDC
Pressure Port: M27×2 or customize
Shell Material: Stainless Steel 1Cr18Ni9Ti
Wire: polythene
Protection Grade: IP65
Company Contact:
- Phone: +862989161392
- Address: The 30th Floors,Kaixuan Massion,Xuanwu Road West,Weiyang District Xian City,Shaanxi Province,China 7, Xian , Shaanxi , China
- Email:
- Website: http://www.xian-sensor.com
Published date: December 21, 2017 - Modified date: December 21, 2017
- Business Description: Xian Chuangjin Electronic technology Co., LTD founded in year of 2013 is professional in researching and providing a series of Pressure/Level/Temperatur e Transmitter, Sensor, Switch Controller, Flow Meter, Density Meter, Vibration Wire Piesometer, MINI Osmometer, Earth Pressure Cell, Dynamic Strain Amplifier.
We offer ODM and OEM service and own ISO9001: 2000 Certificate.
Pressure Transmitters and Temperature Transmitters are granted CE certificate.
These products are also widely used in aeronautical and space, waterway, navigation, petrochemical industry, irrigation works, electric power, coal metallurgy, water supply, natural gas supply, steam and warm supply, medicine and bioengineering etc and scientific research institutions.
When there's no standard product to fit your application or cost requirements, simply talk to us about your requirements, both technical and budgetary, and well develop your customer solution, including power supplies, measurement range, output, port type etc, then fully test the system prior to supplying it to you on time, complete and ready to install.
Welcome customer from domestic and abroad to inquiry.
