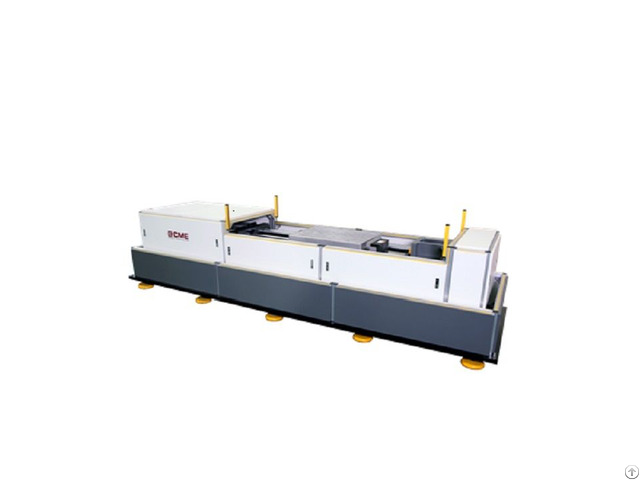

Krd12 Pneumatic Horizontal Shock Test System - China

KRD12 series shock test system is used to measure and determine the horizontal impact resistance of a product or package, and to evaluate the reliability and structural integrity of the test unit in a horizontal impact environment.

The system can perform conventional half-sine wave, post-peak sawtooth wave, or trapezoid wave shock test to realize the shock energy that the product is subjected to in the actual environment, thereby improving the product or packaging structure.

 Windows-based stable control system, full-automatic remote-control interface  Pneumatic cylinder driving with advantages of large driving force, short accelerating stroke, low cost and pollution free.

 Trapezoidal guide posts: large supporting force, good lubricity and full-automatic positioning table.

 Automatic control of shock speed: the shock overload value is achieved by adjusting the air pressure.

After the cylinder pressure is set, system will automatically control the shock speed with high accuracy and good repeatability.

 Adopts the high strength and hardness cast aluminum table, which has high first-order resonance frequency, featured with low noise and no clutter  The most reliable double-brake system: effectively avoids secondary rebound collisions, more securely positioning the table, and more reliably guarantees the safety of the operator.

 Multiple waveforms: can perform conventional half-sine waves, post-peak sawtooth waves, or square waves.

 Integrated control & measurement system: the system comes with a variety of waveform tolerance bands that comply with the MIL-810 standard, automatically generates test reports after the test is completed.

 Bidirectional shock: the system can be designed as a bidirectional shock according to user needs, saving test time more effectively.

 Optional foundation free: air springs and dampers are used to reduce vibration.

Technical Specifications

Model KRD12-10 KRD12－50 KRD12－100 KRD12－200 KRD12－500 KRD12－1000 KRD12－2000 KRD12－3000

Rated Load (kg) 10 50 100 200 500 1000 2000 3000

Table Size (mm) 200×200 500×500 600×600 800×800 1000×1000 1200×1200 1500×1500 2000×2000

Peak Acc (g) Half-Sine 10-5k 10～1.5k 10～1k 10-800 10-600 10-500 10-200 10-150

Post-Peak Sawtooth 10～200 10~100 10~50

Trapezoid / 15～200 15～200 15-100 15-60 15-60 15-50 30-50

Pulse Duration (ms) Half-Sine 0.3~40 1~60 1.5～60 2～60 2.5～60 3～60 6～60 8～60

Post-Peak Sawtooth 3~18 6~18 Trapezoid / 3~18 6~18

Bump Waveform Half sine wave

Bump Peak Acceleration(g) 4-150 5-100

Bump Pulse Duration (ms) 2-30 3-30

Bump Rate(Times/Min) 10-120

Overall Dimension(mm) 3000×1150×850 3300×1150×850 3500×1200×850 3800×1300×850 4000×1450×850 4500×1650×850 5500×2000×850 6000×2200×850

Weight (kg) 2000 2500 3000 4000 4500 5000 6000 7500

Installation Condition

Environment Temperature range 0 ~ 40℃; Humidity ≤ 80%, non-condense Power AC220V±10%, 50Hz Air source ≤1MPa Floor Foundation-free, the cement floor shall be leveled and the working distance of 800 ~ 1000mm shall be reserved around the equipment

Standard MIL-STD-810F IEC68-2-27
