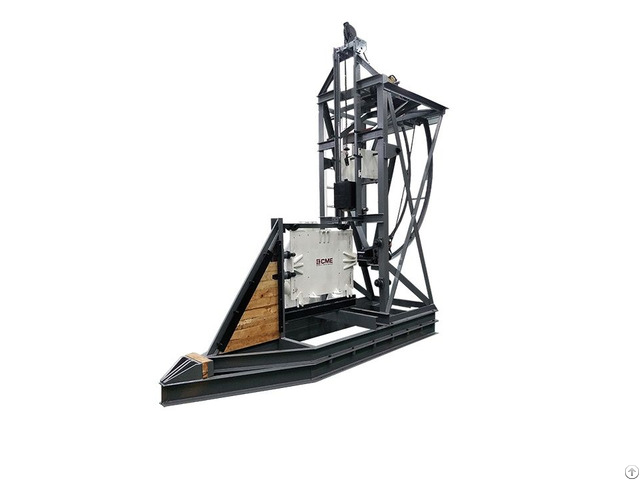

Krd16 High Impact Shock Test System - China

High impact shock test system meets MIL-S-901D standard which covers shock testing requirements for ship board machinery, equipment, systems, and structures, excluding submarine pressure hull penetrations.

The purpose of these requirements is to verify the ability of shipboard installations to withstand shock loadings which may be incurred during wartime service due to the effects of nuclear or conventional weapons.

CME provides lightweight & medium weight high impact shock test system in accordance with one of the following test categories, as specified.

-Lightweight.

The lightweight test is a test performed on the lightweight shock machine.

Weight of the test item including fixture to attach it to the test machine shall be less than 550 pounds.

-Medium weight.

The medium weight test is a test performed on the medium weight shock machine.

Weight of the test item including fixture to attach it to the test machine shall be less than 7, 400 pounds.

Technical Specifications

Model KRD16-1 KRD16-2 Lightweight Medium weight

Max Load(kg) 200 3000(Including tooling≤3400)

Pendulum Mass(kg) 181 1342

Shock Form Preset energy automatic completion

Drop Hammer Height(mm) 0-1500 0-1870

Work Table Size (mm) 4A (Flat plate) 860×570 1520×1520 4C-Ⅰ (Angle plate) 670×300 4C-Ⅱ (Angle plate) 670×300 4C-Ⅲ (Angle plate) 670×550 Overall Dimension (mm)

4800×1400×4400 3650×3300×3200

Weight(kg) 3500 15000

Power AC380V±10％50Hz 3kW AC380V±10％50Hz 20kW

Working Environment Temperature range: 0～40℃, humidity≤80% (no condense)

Standards MIL-S-901D
