Krd61 6 Dof Test System - China

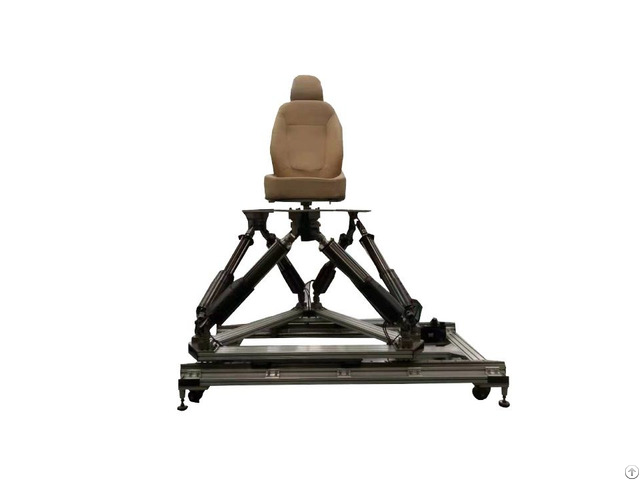

KRD61 series 6-DOF simulation table is a closed-loop servo simulation platform consisting of six servo actuators and six sets of dedicated hinges connected at the top and bottom platforms respectively.

By virtue of the telescopic movement of the six actuators, the upper platform moves in six degrees of freedom (X, Y, Z, α, β, γ), so various space motion attitudes can be simulated.

It is widely applied as testing or training simulators in the field of aircraft, vessel, helicopters taking off and landing, automotive, train, earthquake, motion movies, entertainment equipment and other fields.

It can even be used for docking of space spacecraft and for refueling of aerial tankers.

In the processing industry, it can be made into six-axis linkage machine tools, smart robots, etc.

1 - It can realize posture simulation, sine wave simulation, single-DOF motion, and multiple-DOF composite motion.

2 - It can realize road spectrum filtering, road spectrum, wave spectrum, and flight spectrum replication.

3 - Provide third-party communication interface through TCP / IP protocol.

4 - Provide internal and external data output control interfaces.

Technical Specifications

Model KRD61-100 KRD61-300 KRD61-500 KRD61-1000 KRD61-2000 KRD61-5000 KRD61-10T

Max.

Load(kg) 100 300 500 1000 2000 5000 10000

Height of Specimen COG (mm) 500-1000(customized by product)

Table Dimension (mm) customized by testing conditions

Pitch ±10°/ ±20°/ ±30°/±45°/ ±60°(customized)

Roll ±10°/ ±20°/ ±30°/±45°/ ±60°(customized)

Pitching Displacement (mm) ±50／ ±80／ ±100／ ±200／ ±300／ ±400／ ±500

Rolling Displacement (mm) ±50／ ±80／ ±100／ ±200／ ±300／ ±400／ ±500

Heaving (mm) ±50／ ±80／ ±100／ ±200／ ±300／ ±400／ ±500

Power Supply AC380V±10%, 50Hz

Working Environments Temperature Range: 0-40°C, Humidity 80% (no condense)

Standards AC156 ISO 12405 ISO 13849-1 ISO 13090-1 ISO 2631-1
