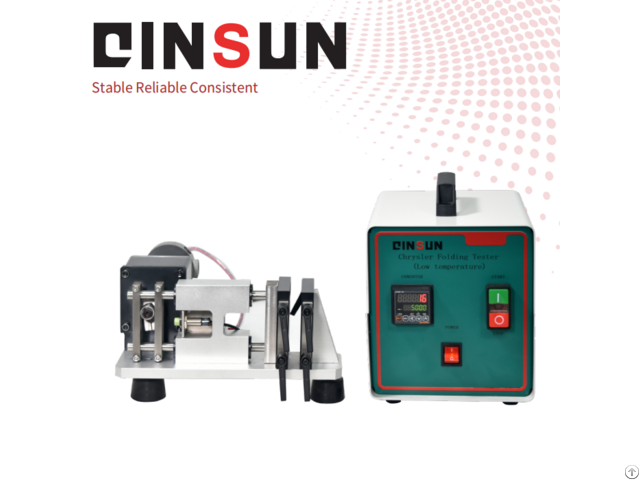

Low Temperature Bending Tester - China

Standards ASTM D1790: Brittleness temperature testing for plastic sheeting under impact.

ASTM D1593M: Low-temperature flexibility of coated fabrics.

JIS K6545: Flexing endurance assessment for leather and synthetic materials in cold climates.

Product Advantages Extreme Temperature Performance: Tests materials from ambient to -60°C, simulating Arctic or high-altitude conditions.

Dual Fixture Options: 6-station (1.5Hz) or 12-station (100 cycles/min) configurations for versatile testing protocols.

Precision Cooling: R404A refrigerant and France Taikang compressors achieve -60°C in 60 minutes with ±0.5°C accuracy.

Enhanced Safety: Thermal shutdown, overload protection, and vacuum-insulated windows ensure operator safety.

Modular Design: Interchangeable V-shaped fixtures (40° angle, 6.4mm radius) accommodate footwear uppers, gloves, and textiles.

Energy Efficiency: 4kW power consumption with hard foam/glass wool insulation minimizes operational costs.

Product Features Stainless Steel Construction: Corrosion-resistant 304-grade steel chamber with dual-layer vacuum windows.

Omron Controller: Programmable temperature ramps, cycle counts, and hold times with LCD data display.

Rapid Cooling System: -30°C achieved in 45 minutes; -60°C in 60 minutes via cascading refrigeration.

Safety Suite: Leakage protection, over-temperature alerts, and 5-minute compressor delay for longevity.

Illuminated Chamber: 5W LED lighting for clear sample observation during testing.

Multi-Station Flexing: 12 clamps with 22.5° bending angle or 6 clamps with 40° V-shaped fixtures.

Technical Parameters Parameter Specification

Temperature Range Ambient to -60°C (dual models)

Control Accuracy ±0.5°C

Uniformity ±2°C across chamber

Cooling Rate -30°C in 45 min / -60°C in 60 min

Fixture Options 6 or 12 stations (V-shaped/flat)

Flexing Frequency 1.5Hz or 100 cycles/min

Power Supply AC380V, 50Hz, 4kW

Chamber Dimensions 60 × 60 × 55 cm (W × D × H)

Footprint 110 × 105 × 160 cm (W × D × H)

Net Weight 420 kg

Safety Certifications CE, ISO 12100, RoHS-compliant
