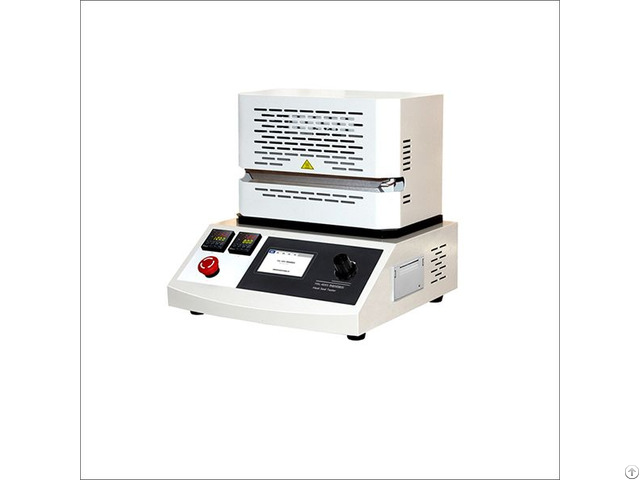

Plastic Cup Cover Thermal Strength Testing Machine Auto Test Equipment - China

price: 100.00 Dollar US$

Testing Instrument for Sealing Strength of Jelly Cup Cover Film Heat Seal Testing Machine Products Details Application: Applies to best parameters determination of heat sealability of various kinds of film.

Heat sealability of film depends on temperature, pressure and heat time and the HSL-6001 Heat Seal Tester is widely used in food and pharmaceutical packaging industries.

Testing Instrument for Sealing Strength of Jelly Cup Cover Film Heat Seal Testing Machine Features: 1: Our own patent technology 2: Embedded system control 3: Touch screen operation, easy to operate 4: TFT LCD display, UI flattening design 5: Dual heat jaws, temperature controlled independently 6: Micro-printer prints mini-report

7: Pressure easy to adjust, heat temperature and time touch screen input.

8: Emergency stop button, safety design to prevent burns 9: Over temperature protection, over pressure protection 10: Silence working 11: DB9 RS232 communication port.

12: DSM system is optional(Laboratory Management Information System), easy to manage and share test data.

Testing Instrument for Sealing Strength of Jelly Cup Cover Film Heat Seal Testing Machine Technical Indexes: Heat temperature Room temperature+6 ~ 300℃

Accuracy 0.2 ℃

Dell time 0.1~ 999.9s

Pressure 0.05 MPa~1.1MPa

Heat jaw surface 265mm 12 mm (customized)

Heat jaws 2, controlled independently

Gas source pressure 0.05MPa ~ 1.1MPa (self-provide)

Gas source interface Ф6mm

Outer dimension 536 mm (L)35 mm (W)13 mm (H)

Work noise 0db

Power supply AC 220V 50Hz

Net weight 33kg


Company Contact:


  • Phone: 18765316730

  • Address: Meili Road, Jinan , Shandong , China

  • Email: Email


Published date: November 18, 2019

  • Business Description: SYSTESTER Instruments Co., Ltd is a leading manufacturer of package testing instruments and have over 20 years experience.

    SYSTESTER is a professional provider of integrated package testing solutions and instruments of food and pharmaceutical industries, dedicates to cutting-edge technology research and development.

    SYSTESTER assists you to solve all flexible packaging problems and makes production profit maximization depending on the creative thought and technical abilities.

    SYSTESTER is a modern company with family kind culture, passion, innovation concept and scientific management.
