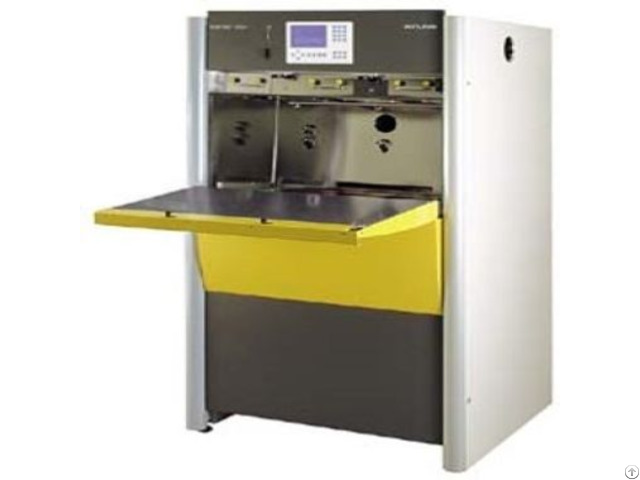

Qinsun Suntest Xxl - China

Qinsun SUNTEST XXL+is a large xenon lamp weathering and photoaging tester that complies with various ISO, ASTM, and ICH industry standards.

The exposed area of 3000 cm2 on its horizontal plane is an ideal choice for 3D sample testing.

Qinsun SUNTEST XXL+is used to detect short-term changes in the characteristics of materials and products caused by sunlight, temperature, and moisture.

The changes that occur in the product outdoors or indoors, such as fading, yellowing, or strength loss, may take several months or years, while in a Qinsun SUNTEST XXL+ testing instrument, it often only takes a few weeks to simulate.

Standards:

AATCC TM169 Weather Resistance of Textiles: Xenon Lamp Exposure VW PV 3930 Non-Metallic Materials - Weathering in Moist, Hot Climate Advantage:

According to CIE85 advanced solar radiation simulation Optional filters, used to simulate sunlight passing through window glass, etc.

Excellent test chamber design for testing 3D samples Easy to use touchscreen user interface with 13 language options Preset standards for convenient and quick startup settings Equipped with openings for easy connection of additional external sensors Black label temperature sensor (BST) compliant with ISO 4892-1 standard Automatic irradiance control to meet different testing requirements Characteristic:

Size 90 x 91 x 172 cm Exposed area 79 x 39 cm (3000 cm2) 3 air-cooled 1700 watt xenon lamp tubes Easy to use touchscreen user interface with 13 language options Directly set and control the irradiation intensity (300-400 nanometers or 340 nanometers) Directly set and control the black label temperature (BST) or blackboard temperature (BPT) Directly set and control the box temperature (CHT) Directly control the tolerance range of each test parameter, optimized test control Display diagnostic information 10 programmable tests, each containing up to 12 stages Pre set polymer and coating standards for easy and quick access Horizontal exposure area of 3000 cm2 for 34 standard or multiple 3D samples According to CIE85 advanced daylight simulation Lamp box equipped with aluminum reflector, lamp tube connector, and filter slot External filter with infrared reflective coating The irradiation control range is 30-65 W/m2 (300-400 nanometers); 0.26-0.62 W/m2 (340 nanometers) Measure and control CHT: Temperature Max70 ° C (brightness cycle) Measure and control BST or BPT: Temperature Max100 ° C (brightness cycle) Design of BST sensor in accordance with ISO 4892-1 Temperature control can be selected through CHT or dual control: simultaneously control CHT and BST (BPT) Control temperature difference between CHT and BST (BPT) Ultrasonic humidification system for humidity control Sample spray system with 60 liter water tank Tilt the sample testing plane at a 5-degree angle to facilitate the flow of spray water Approximately 30 x 25 mm inlet port, connected to internal sensors of the test chamber End the experiment based on exposure to sunlight, exposure time, or total operating time Advanced automatic start function Output data through memory card or RS 232 interface Internal storage chip for storing tool data Qinsun Instruments Co., LTD is a professional laboratory testing instrument manufacturer in China, Have been focusing on laboratory instrument R&D more than 30 years and have rich industry experience, Based on international testing standards, We are also the instrument supplier for BV SGS laboratory, We provide one-stop solutions for lab instruments, Free Training and Turn-Key Service, Products exported all over the world, Offer 36 month warranty and are a trustworthy partner.
