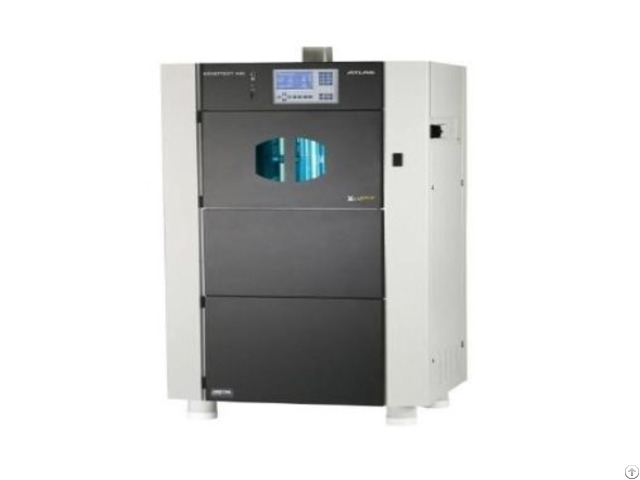

Qinsun 440 - China

Standard The Qinsun 440 is engineered to meet stringent international testing standards, including ASTM G155, ISO 105 B02, SAE J2412, and IEC 68-2-5, ensuring reliable evaluation of material resistance to light, heat, and humidity.

Pre-programmed test cycles simplify compliance with industry-specific aging protocols.

Product Advantages

Innovative XenoLogic™ Technology

Dual-lamp operation achieves 120 W/m² full UV irradiance while extending lamp lifespan to 4, 000+ hours at standard test levels (40–60 W/m²), reducing maintenance costs.

Energy-efficient design lowers operational expenses compared to single-lamp systems.

Precision Control & Flexibility

Direct adjustment of irradiance (300–400 nm), black standard temperature (BST, up to 115°C), chamber temperature (CHT, up to 65°C), and humidity (10–75% RH).

Dual temperature control mode (BST + CHT) for accelerated aging simulations.

User-Centric Design

Intuitive 7" color touchscreen with multilingual support (13 languages).

Store 10 custom test profiles and access real-time diagnostic data.

UV-resistant observation window for safe in-process monitoring.

Scalable Testing Capacity

Rotating sample holder with 38–11 testing positions (adjustable for varying specimen sizes).

Optional spray system for corrosive environment simulations.

Product Features

Light Source: Dual 2, 200W air-cooled xenon lamps with UV-filter sleeves.

Exposure Area: 2, 310 cm² (optimized for uniform irradiance distribution).

Humidity Management: Ultrasonic humidifier with 60L integrated water tank (auto-refill).

Data Connectivity: Ethernet, RS-232, and memory card output for remote monitoring via XenoTouch™ software.

Safety: Overheating protection, low-water alerts, and emergency stop function.

Customization: Filter sleeve options for tailored spectral distribution (e.g., window glass, extended UV).

Technical Parameters

Parameter Specification

Lamp Type Air-cooled xenon (2 × 2, 200W)

Irradiance Range 300–400 nm: 30–120 W/m² (adjustable)

Temperature Control BST: RT+10°C to 115°C / CHT: RT+10°C to 65°C

Humidity Range 10–75% RH (photoperiod)

Sample Capacity 11–38 positions (variable rack sizes)

Water Tank Capacity 60L (automatic replenishment)

Power Supply 220–240V AC, 50/60Hz, 32A

Dimensions (W×D×H) 1, 200 × 1, 100 × 1, 850 mm

Weight 450 kg

Accessories

Standard Inclusion:

XENONSENSIV® RC-300-400 BST Sensor: Measures irradiance (W/m²) and BST (°C) at sample level.

Rotating Sample Holder: 38 slots for 13.5 × 4.5 cm specimens (other sizes available).

UV Filter Sleeve: Standard spectral calibration.

Optional Upgrades:

Dual Temperature Control Kit: Simultaneous BST (115°C max) and CHT (65°C max) regulation.

Spray Nozzle System: For cyclic corrosion testing (saltwater compatible).

Extended Warranty: Priority technical support and lamp replacement service.

Qinsun Instruments Co., LTD is a professional laboratory testing instrument manufacturer in China, Have been focusing on laboratory instrument R&D more than 30 years and have rich industry experience, Based on international testing standards, We are also the instrument supplier for BV SGS laboratory, We provide one-stop solutions for lab instruments, Free Training and Turn-Key Service, Products exported all over the world, Offer 36 month warranty and are a trustworthy partner.
