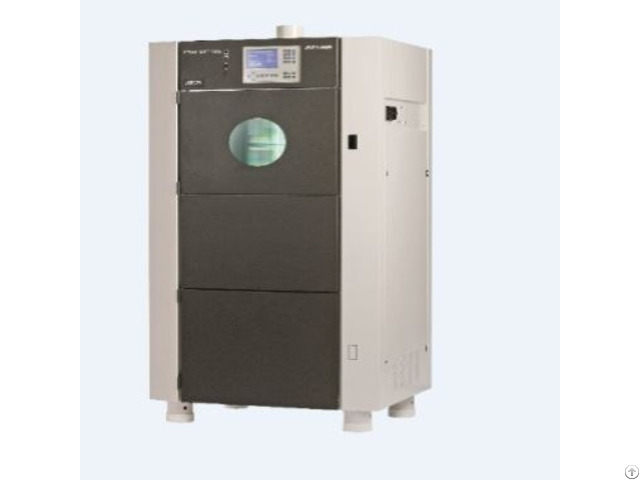

Qinsun Xenotest 220 - China

Standards ISO 105-B02: Lightfastness testing for colored textiles.

AATCC TM16 (Option 3): Accelerated weathering for textiles under controlled conditions.

Marks & Spencer C9/C9A: Retail-specific durability protocols for apparel and home textiles.

Product Advantages

Unmatched Capacity:

Tests 38 samples simultaneously, doubling the throughput of the 150 S+ model within the same footprint.

Optimized for high-volume testing without compromising precision.

Cost Efficiency:

Air-cooled design reduces energy consumption by 30% compared to water-cooled alternatives.

60-liter integrated water tank minimizes refill frequency for ultrasonic humidification.

Precision Control:

Direct adjustment of irradiance (300–400 nm), black label temperature, chamber humidity, and airflow.

Dual temperature control (up to 100°C) for black label and chamber, managed via fan-assisted differential regulation.

User-Centric Design:

220+ Model: Color touchscreen interface with multi-language support (10+ languages) and 10 programmable test presets.

Advanced Diagnostics: Real-time error alerts and internal data logging via storage chip.

Compliance & Versatility:

Preconfigured for ISO and AATCC standards, with customizable end-of-test triggers (sunlight exposure, runtime, or illumination dose).

Product Features

Illumination System: 2200W air-cooled xenon lamp tube for stable UV-A to visible light output.

Long-life filter technology ensures consistent spectral distribution (300–400 nm) over 1, 500+ hours.

Sample Handling:

XENONSENSIV® Sample Rack: Holds 19 containers (38 textile samples) with integrated sensors for irradiance (W/m²) and black label temperature (°C) monitoring.

Climate Control:

Ultrasonic humidification with automatic water replenishment.

Relative humidity range: 10%–70% RH (non-condensing).

Connectivity:

Ethernet & RS232 interfaces for data export.

XenoTouch Attachments: Remote monitoring, email alerts, and cloud integration (Optional 1/2/3).

Safety & Durability:

UV-blocking observation window for safe sample inspection.

Robust construction with corrosion-resistant materials for industrial environments.

Technical Parameters

Specification Details

Lamp Type 2200W air-cooled xenon arc

Exposure Area 310 cm² (48 in²)

Irradiance Control 300–400 nm, adjustable via touchscreen (220+)

Temperature Range Chamber: 30–65°C (86–149°F) / Dual: 30–100°C

Humidity Range 10%–70% RH (non-condensing)

Power Supply 230V, 50/60Hz, 25A

Dimensions (W×D×H) 900 × 750 × 1, 800 mm

Weight 320 kg (705 lbs)

Accessories & Options

XenoTouch 1/2/3: Remote control, real-time email alerts, and web-based monitoring.

Dual Temperature Control Kit:

Simultaneous management of chamber and black label temperatures.

Extended Warranty:

3-year coverage for lamp, filters, and electronics.

Custom Filter Sets:

Tailored spectral ranges for specialized textiles (e.g., UV-enhanced for outdoor fabrics).
