Sanitary Pressure Transmitter - China

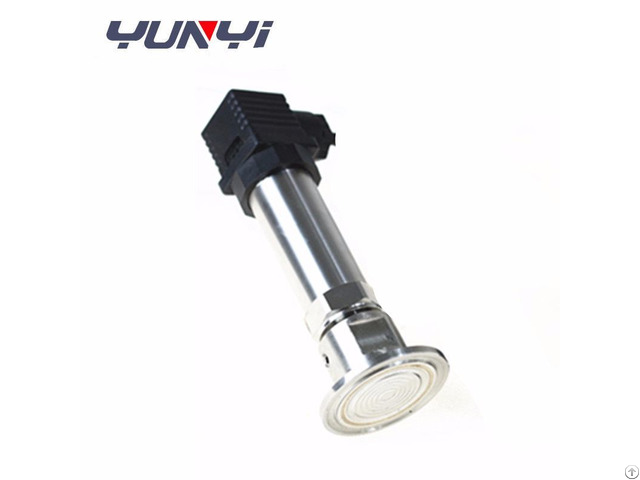

sanitary pressure transmitter Name: Sanitary Flush Diaphragm Pressure Transmitter Pressure Range: -1 Bar-0-1 Bar200 Bar / 0-1M2000M H2O Optional Overload: 150% F.S. Burst Pressure 300% F.S. Accuracy: (Linearity Hysteresis Repeatability) ≤ ±0.5%F.

S ≤ ±0.2%F.

S ≤ ±0.1%F.

S Including non-lin., rep.

and hys.

Optional Long Stability: Standard: 0.1%F.

S±0.05% Working Temp: -30°C~80°C Storage Temp: -40°C~120°C Temperature Compensation: -20°C~75°C Medium compatible: Compatible with 316L Stainless Steel Electronic Wire: 2 Wire 3 Wire 4wire Output: 4~20Ma 0~5V 0~10 V mv Power Supply: 9~36 V DC 9~36 V DC 15~36Vdc 5 V DC Insulate resistance: >100M Ω @50V Zero Temp.

Drift: 0.03%FS/°C(≤100kPa), 0.02%FS/°C(>100kPa) FS Temp.

Drift: 0.03%FS/°C(≤100kPa), 0.02%FS/°C(>100kPa) Electronic connection: Fixed cable and water proof IP68 Process Connect: Φ50 mm Diameter Clamp Response time: ≤20ms Pressure Type: Gauge pressure Absolute pressure optional.

Certificate approving: Exia IICT6 and CE Certificate.

EMC Standard: electromagnetic radiation: EN50081-1/-2 electromagnetic susceptibility: EN50082-2 Water Proof: IP65 Weight: Net weight is about 0.65KG, Full Packing weight is about 1.0KG (Not Include Cable) Remarks: Special applications request by order Regards, Katerina
