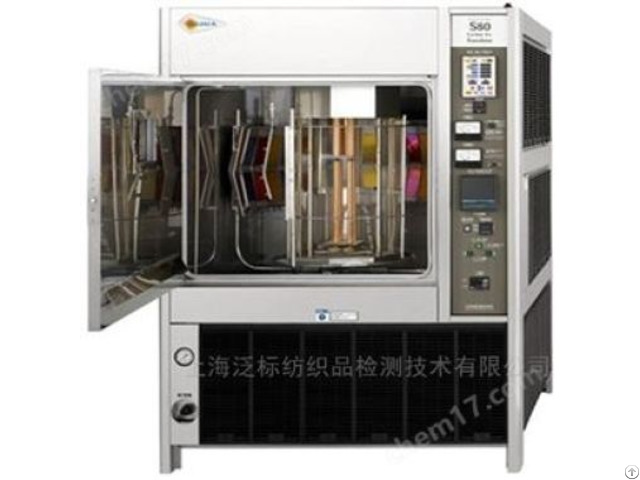

Suga S80 Carbon Arc Weathering Tester - China

Applicable Standards

The SUGA S80 adheres to globally recognized standards, including: ISO, AATCC, ASTM (e.g., ASTM G152 - ASTM D822 for coatings) JIS L0891 (textiles), JIS D0205 (automotive parts) GB/T 16422.4-2014 (plastics), GB/T15255-1994 (rubber) These standards ensure reliable testing for colorfastness, weather resistance, and material degradation.

Working Principle

The S80 simulates natural sunlight using carbon arc lamps, emitting UV, visible, and infrared radiation.

The tester controls irradiance, temperature, and humidity to replicate harsh outdoor conditions.

A water spray system introduces rain cycles, accelerating degradation mechanisms like photo-oxidation and hydrolysis.

Test Principle

Materials are exposed to controlled light/dark cycles and humidity variations.

The carbon arc lamps’ spectral distribution matches solar radiation, causing gradual fading, cracking, or embrittlement.

By adjusting parameters (e.g., irradiance, temperature), the S80 accelerates aging, predicting long-term outdoor performance in weeks rather than years.

The SUGA S80 is indispensable for R&D and quality control, offering accurate, efficient, and standardized aging tests.

Main Parameters

Parameter Specification

Light Source 4 pairs of ultra-long-life carbon arc rods

Continuous Illumination Time 78 hours

Voltage/Current 50±2 V, 60±2 A

Test Modes Light only, light + front spray (rain)

Temperature Range 63±3°C BPT, 30–70±5% RH

Sample Capacity Up to 70 pieces (150×70×1 mm)

Dimensions 136 cm (W) × 135 cm (D) × 226 cm (H), 560 kg

Qinsun Instruments Co., LTD is a professional laboratory testing instrument manufacturer in China, Have been focusing on laboratory instrument R&D more than 30 years and have rich industry experience, Based on international testing standards, We are also the instrument supplier for BV SGS laboratory, We provide one-stop solutions for lab instruments, Free Training and Turn-Key Service, Products exported all over the world, Offer 36 month warranty and are a trustworthy partner.
