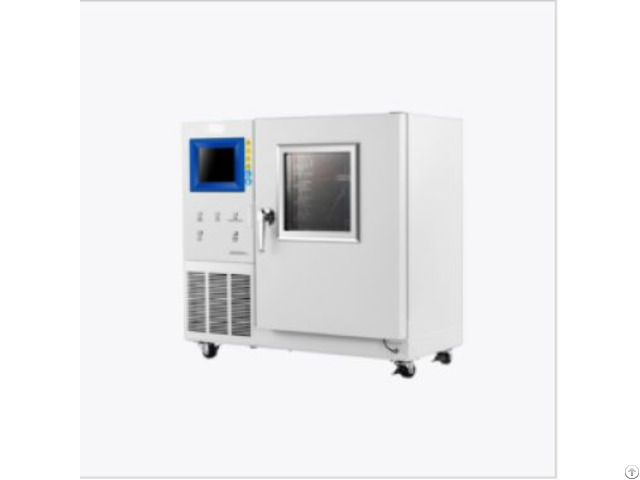

Accelerating Decomposition Temperature Tester - China

Standards

GB21613-2008 GB/T 39093-2020 Product Features

1 - It adopts an embedded processor and the Windows CE operating system.

2 - With an 8 - inch liquid - crystal touch screen, it can display the test status in real - time.

3 - It has a built - in air circulation system to ensure the uniformity and stability of the cabinet temperature.

4 - The digital PID algorithm precisely controls the heating temperature with high temperature - control accuracy.

5 - It is equipped with a cooling device to prevent the sample from overheating and exploding.

6 - The auxiliary safety device can automatically cut off the heating system at a preset temperature.

7 - The instrument has a fault - detection function and audible and visual alarm functions to ensure the safety of the test.

8 - The front of the equipment is equipped with an explosion - proof glass observation window, and the back has a pressure - relief door design.

When the internal thrust is greater than 2.5 kilograms of force, the pressure - relief door will open to ensure the safety of the test.

9 - It can display the running time and real - time temperature in real - time, automatically draw test curves, and allow viewing of original data.

10 - The test options are diversified, and users can configure corresponding test parameters according to the characteristics of the samples.

11 - The test process is fully automated, requiring no manual intervention.

It supports functions such as parameter setting, data storage, and report viewing.

Technical parameters

Operating environment (5～40)℃, <85%RH Chamber temperature control range -20°C to 220°C Temperature control accuracy ±0.5°C Sample temperature measurement range (-50 to 500)°C Sample temperature measurement resolution 0.1°C Sample temperature measurement accuracy ±2.5°C up to 300°C; ±(0.75% of reading) above 300°C Dewar's bottle capacity 1L
