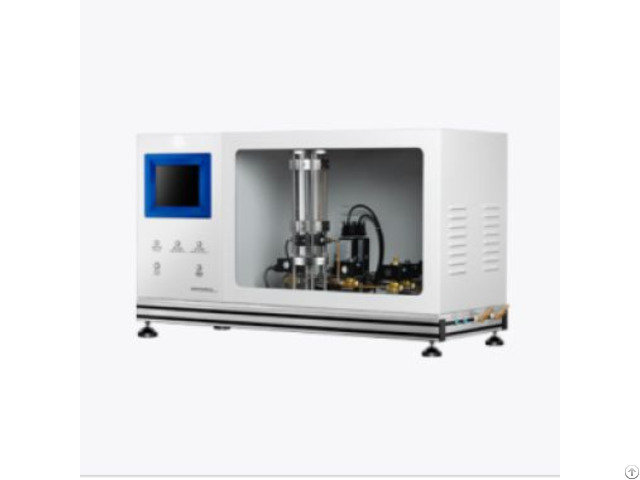

Gas Hazardous Characteristics Chamber - China

Standards

GB 1952.3-2004 uISO 10156：1996 uGB 5085.4 uNY/T 1860 Product Features

1 - It adopts an embedded processor and the Windows CE operating system.

2 - With an 8 - inch liquid - crystal touch screen, it can display the test status in real - time.

3 - The high - resolution photosensitive sensor has a short response time, ensuring that the gas can be captured instantly during flash - explosion and an inspection signal can be output.

4 - It uses dual - channel digital flow meters.

With high - precision gas flow control, it enables the precise mixing of the gas to be tested and air.

5 - The instrument is equipped with an online gas - sampling channel, and the gas to be tested can be determined by gas chromatography - mass spectrometry (GC/MS) and other means.

6 - Through a high - precision photosensitive sensor, the instrument can sense the light intensity in the reaction tube in real - time, automatically determine whether the gas at this concentration is flammable, and simultaneously give the combustion rate value.

7 - During the test process, it can automatically determine the flammability and control the increase of gas concentration in steps.

8 - The reaction chamber is equipped with double - layer tempered glass to protect the safety of experimenters.

9 - The test process is fully automated, requiring no manual intervention.

It supports functions such as parameter setting, data storage, and report viewing.

Technical parameters

Operating Environment (5~40)℃, <85%RH Flow Control Range (5~500)sccm Flow Control Accuracy ±1%FS Flow Measurement Response Time ≤1s Combustion Detection Response Time ≤1ms Reaction Tube Size 300mm long, 50mm inner diameter, 5mm thick Combustion Velocity Detection Range ≤500cm/s Combustion Velocity Detection Model Accuracy 5mm/s Gas Channel Inlet Pressure ≤5MPa Gas Sampling Bag 1L
