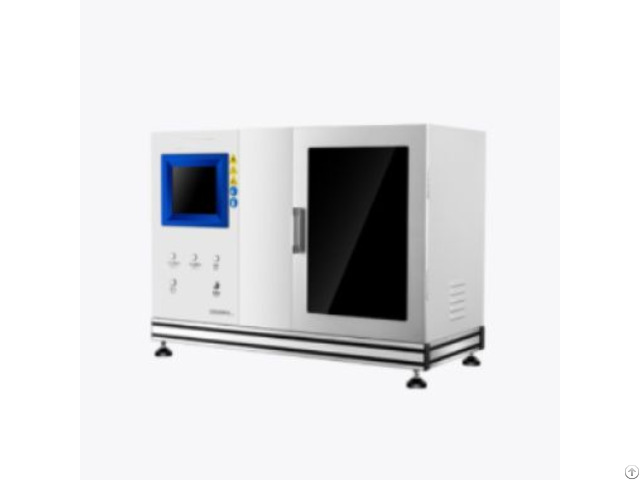

Aerosol Foams Flammability Chamber - China

Standards

GB/T 21632-2008 NY/T 1860 Product Features

1 - It adopts an embedded processor and the Windows CE operating system.

2 - With an 8 - inch liquid - crystal touch screen, it can display the test status in real - time.

3 - It uses highly sensitive photoelectric detection technology to measure the duration of flame combustion and the maximum flame height.

4 - Its unique stacked - structure design effectively eliminates backlight interference and is applicable to the judgment of flame heights in various irregular shapes.

5 - Automatic judgment of flame height ensures the accuracy of data.

6 - It displays test animation images in real - time.

7 - It is equipped with a high - precision temperature and humidity module to monitor the temperature and humidity of the test environment in real - time, ensuring the stability of test results.

8 - The test process is fully automated, requiring no manual intervention.

It supports functions such as parameter setting, data storage, and report viewing.

Technical parameters

Operating Environment (5～40)℃, <85%RH

Flame Height Detection Range (0～235)mm

Flame Height Detection Resolution 5mm

Combustion Detection Response Time ≤6ms

Ambient Temperature Measurement Range (-10～+60)℃

Ambient Temperature Measurement Accuracy ±0.5℃

Ambient Humidity Measurement Range (5～95)%RH

Ambient Humidity Measurement Accuracy ±5.0%RH

Ignition Mode Gas Igniter

Load Glass Size Ф150mm
