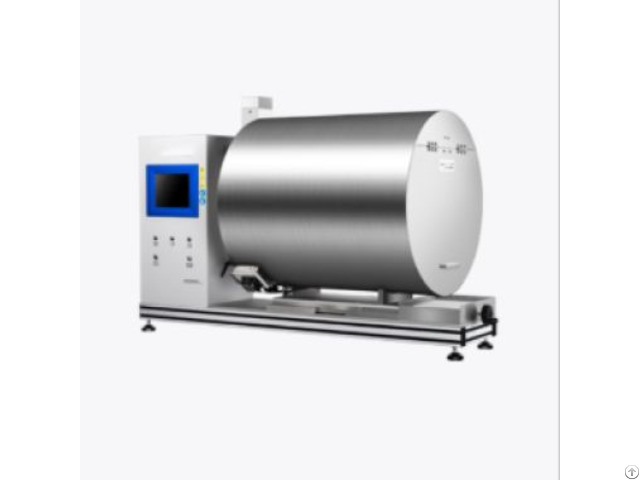

Closed Space Tester - China

Standards

GB/T 21631-2008 GAT536 NY/T 1860 Product Features

1 - It adopts an embedded processor and the Windows CE operating system.

2 - With an 8 - inch liquid - crystal touch screen, it can display the test status in real - time.

3 - It integrates two working modes: the "standard mode" and the "custom mode".

4 - The aerosol can sprays automatically, and the aerosol can clamping device can automatically turn the can upright and upside - down.

5 - Automatic timing during spraying.

6 - With a dual - detection module consisting of a pressure sensor and a nanosecond - level photosensitive sensor, it can automatically detect whether the flame is burning or whether an explosion occurs in an enclosed space.

7 - It is equipped with a ventilation system to promptly discharge the smoke and unburned aerosol in the drum, ensuring the accuracy of the test and the safety of the experimenters.

8 - The test process is fully automated, requiring no manual intervention.

It supports functions such as parameter setting, data storage, and report viewing.

9 - It is equipped with a temperature and humidity module to monitor the temperature and humidity of the test environment in real - time.

Technical parameters

Operating Environment (5～40)℃, <85%RH Ambient Temperature Measurement Range -10℃～+60℃ Ambient Temperature Measurement Accuracy ±0.5℃ Ambient Humidity Measurement Range 5%RH～95%RH Ambient Humidity Measurement Accuracy ±5.0%RH Combustion Detection Response Time ≤6ms Pressure Measurement (Differential Pressure) Range -5 kPa ~ 5kPa Pressure Measurement Accuracy ±0.1%FS Timing Display Resolution 0.1s Ignition Flame Compliance with the standard candle flame, adjust the height of the cushion column 20mm / a Cylindrical Vessel Dimensions Ф600mm × 720mm Positioning of Aerosol Tanks Aerosol canisters can be automatically turned over Dimensions of Compatible Misting Tanks Height (120 ~ 400) mm, diameter (30 ~ 80) mm Distance of the Cylindrical Vessel from the Nozzles of Misting Tanks (25 ~ 100) mm adjustable Liquid Accumulation Tray accumulation of spray cans sprayed the remnants of the liquid can be withdrawn at any time to do the treatment
