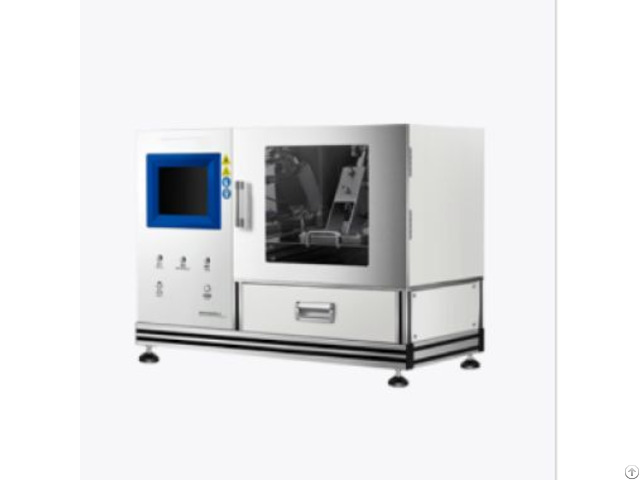

Oxidizing Liquid Time Pressure Chamber - China

Standards

GB/T21620、GB/T 21579-2008、NY/T 1860 Product characteristics

1) Embedded processor, Windows CE operating system 2) 8-inch LCD touch screen can display the test status in real time 3) Automatic detection of pressure vessel air tightness (by detecting the initial pressure drop rate) 4) With ignition sound and light alarm function 5) Stainless steel seamless welded inner liner and pressure vessel, pressure sensor with corrosion resistance, high temperature resistance, high pressure resistance 6) Automatic timing and high-precision pressure detection system, real-time detection and display of pressure changes 7) With automatic pressure relief device, after the test, automatically punctured explosion-proof sheet, release pressure 8) Automatically draw the pressure curve 9) With reaction residue collection and anti-splash function to avoid external contamination of the sample 10) Remote ignition to ensure the safety of experimental personnel 11) The test process is fully automated without manual intervention, supporting parameter setting, data storage, viewing reports and other functions Technical parameters

Operating Environment (5 to 40)°C, <85%RH Pressure Transducer Response Capability Responds to pressure change from 0MPa-3MPa vessel cavity in 5ms Pressure Measurement Range (0 to 5)MPa Pressure Measurement Accuracy ±0.1%FS Heating Method Electronic Ignition Burst Pressure of Rupture Disk 2.5MPa ±5% Standard Timing Range (0 to 60)s Timing Display Resolution 0.01ms
