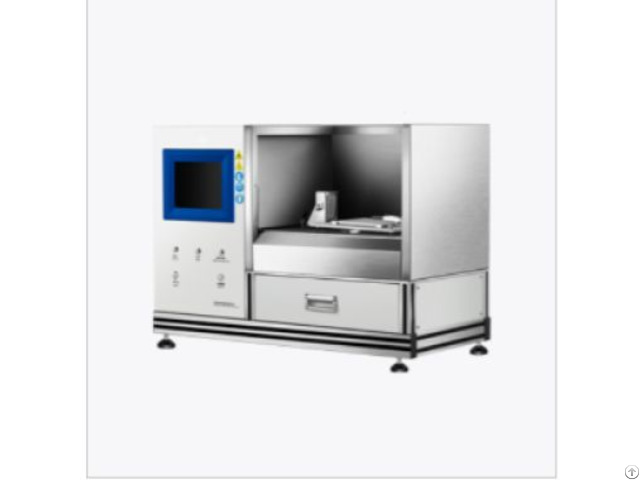

Oxidizing Solids Chamber - China

Standards

GB/T 21617-2023 GB/T 21617-2008 Product Features

1 - It adopts an embedded processor and the Windows CE operating system.

2 - With an 8 - inch liquid - crystal touch screen, it can display the test status in real - time.

3 - It is compatible with both O.

1 standard and O.

3 standard.

4 - It uses full - automatic photoelectric detection technology to reliably detect combustion phenomena.

5 - It has a full - automatic weighing detection by balance, which automatically records the mass loss during the combustion process.

6 - It is equipped with a mold made of standard metal wire.

7 - It can automatically detect the breakage of metal wires and provide audible and visual alarms.

8 - It has a high - precision temperature and humidity detection function to effectively collect environmental temperature and humidity data.

9 - During the test process, it displays the running time and test animation images in real - time.

10 - It supports remote - controlled ignition to ensure the safety of personnel during the experiment.

11 - The test process is fully automated, requiring no manual intervention.

It supports functions such as parameter setting, data storage, and report viewing.

12 - It is equipped with a temperature and humidity module to monitor the temperature and humidity of the test environment in real - time.

Technical parameters

Working Environment (5～40)℃, <85%RH

Heating Method Standard shape inert metal wire heating

Heating Wire Power 150W±2W

Detection Method Infrared sensor array detection method or balance weighing detection method

Balance Weighing Accuracy ±0.1g

Ambient Temperature Measurement Range -10℃～+60℃

Ambient Temperature Measurement Accuracy ±0.5℃

Ambient Humidity Measurement Range 5%RH～95%RH

Ambient Humidity Measurement Accuracy ±5.0%RH

Timing Display Resolution 1s

Timing Accuracy ±7ms/Min

Test Plate Made of corundum, 150mm long, 150mm wide, 6mm thick

Sample Making Molds Made of PTFE, inner diameter 70mm, angle 60° cone
