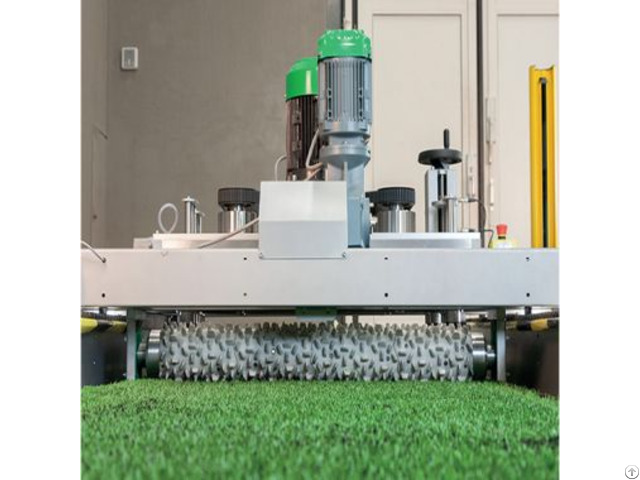

Artificial Turf Wear Chamber - China

Standard

FIFA Quality Programme: Exceeds 2015/2016 handbook requirements for artificial turf abrasion resistance testing.

Product Advantages

1 - Unmatched Realism Dual-Action Abrasion System: Reciprocating rubber-coated discs + particle-embedded rollers simulate realistic athletic wear.

FIFA-Validated Methodology: Mimics cleat impact, sliding, and pivot movements.

2 - High-Throughput Testing Dual-Sample Capacity: Test two 1m × 2m turf strips simultaneously.

12m² Test Area: Industry-leading workspace for large-scale durability mapping.

3 - Precision Engineering Variable Speed Control: 0.1–1.0 m/s adjustable for sprint/jog simulation.

Digital Cycle Counter: Auto-pauses at 3.020/6.020 cycles for intermediate inspections.

4 - User-Centric Design Tool-Free Clamping: Quick-release beams secure turf samples in <60 seconds.

Dutch Craftsmanship: 10+ years of Lisport innovation in every machine.

5 - Robust Construction Corrosion-Resistant Frame: Coated stainless steel + anodized aluminum for 10+ year lifespan.

Floor-Anchored Design: Withstands 1.500kg operational mass without shifting.

Product Features

Abrasion System: Rubber-Coated Discs: 200mm diameter with 60 Shore A hardness.

Particle Rollers: Interchangeable grit inserts (40/60/80 mesh).

Control Panel: 10” HMI touchscreen with pre-loaded FIFA test protocols.

USB/Ethernet ports for PC connectivity and remote diagnostics.

Safety Systems: Emergency stop with E-Stop loop monitoring.

Overload protection at 110% of rated capacity.

Software Suite: TurfDur Pro™: Auto-calculates abrasion resistance (FIFA stars) and fiber loss.

Cloud Sport: Remote monitoring for global R&D teams.

Illumination: Adjustable LED array (3.000–6.500K color temperature).

Anti-glare diffusers for operator comfort.

Accessories & Options

Standard Kit: 2 × Abrasion discs with rubber coating.

4 × Particle roller inserts (40/60/80 mesh).

Quick-release sample clamps.

Software Add-Ons: Batch Processor: Queue 24/7 unattended testing.

API Integration: Connect to MATLAB/Python for custom analytics.

Calibration Services: Annual recalibration with NIST-traceable certificate.

Custom Upgrades: Climate chamber integration (-20°C to +60°C).

Automated fiber loss measurement system.

Consumables: 10L Replacement abrasive particles.

1L Silicone lubricant for high-cycle testing.

Technical Parameters

Specification Details

Test Area 12m² (1m × 12m)

Speed Range 0.1–1.0 m/s (adjustable in 0.01 m/s steps)

Cycle Capacity 1–10.000 cycles (pre-settable intervals)

Power Supply 380V/32A/50Hz (3-phase)

Dimensions (W×D×H) 6.500mm × 2.000mm × 1.800mm (folded)

Expanded Footprint 8.000mm × 3.000mm × 2.200mm (operational)

Weight 1.500 kg (net)
