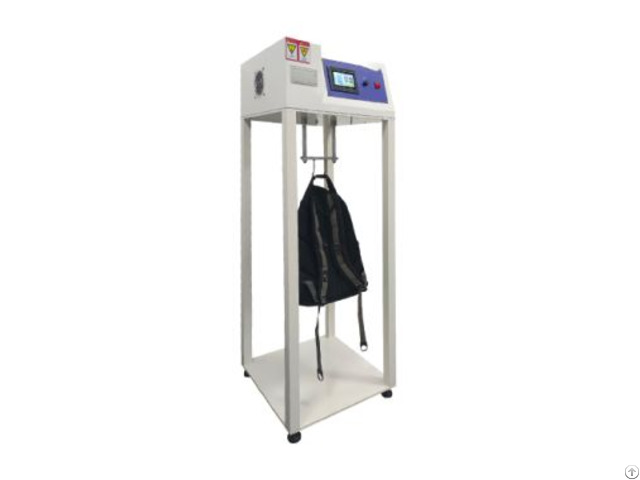

Bag Handling Fatigue Tester - China

This machine is suitable for up and down vibration fatigue test of plastic handbag, garbage vest bag, kraft paper bag, woven bag and other bags bearing a certain weight.

After many fatigue tests, the strength of the bag can be determined.

The bag lifting fatigue testing machine adopts the automatic test mode, placing the sample on the fixture, setting the lifting times and load weight, and automatically completing the experiment process and printing the results.

This fatigue testing machine is widely used in quality inspection institutions and handbag manufacturers.

Standard:

ISO 1167 ASTM D 1598 ASTM D 1599 Main parameters:

Amplitude: 30±2mm Vibration frequency: 2——3HZ (130 times per minute) Test space height: 500/1000mm Load: 20Kg Counting range: 99.999 times in a single cycle Dimensions: 570mm*510mm*1520mm(length , width and height) Weight: 60KG Power supply: 220V 50Hz Technical features:

Microcomputer control, large LCD display Four-column structure, the fatigue test process is stable and reliable PVC operating panel, humanized design The number of bag lifting fatigue test can be set freely Selection of excellent components, low noise, high life The bag lifting fatigue machine comes with a printer, which can quickly print the experimental results Bag weight can be set, the experimental results are clear
