Bally Leather Flexing Tester Suppliers - China

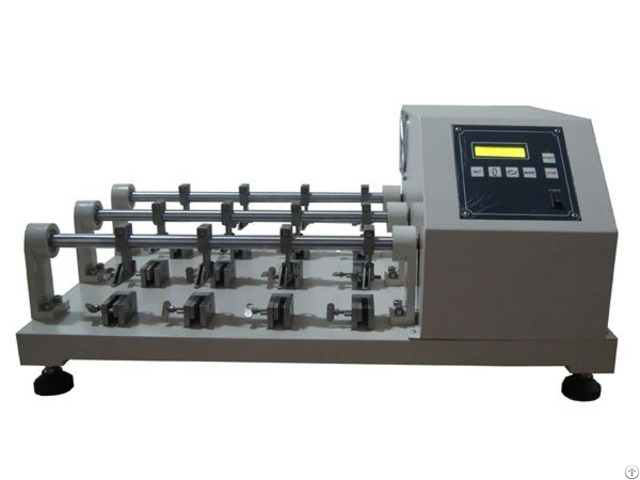

Bally Flexing Tester (Flexometer) is designed for flexing resistance test to bending or other types of failure at flexing creases.

​ Bally flex tester is designed to evaluate the flexural resistance of leather to continual flexure.

It is an universal instrument to assess the flexural resistance of all kinds of light leathers and surface trim, as well as to evaluate the specimens propensity to crack, similar to the crease that forms in a shoe's upper that flexes during walking.

The flexing mechanism of the Bally flex tester is different from that of the shoe upper flex tester.

The functions of two testers complement mutually.

The tester is also used for the pretreatment of specimens prior to the determination of water vapor permeability especially of shoe upper materials used for protective footwear.

Standards

EN ISO 20344: 6.6 Personal Protective Equipment - Test Methods For Footwear

UNI 4818 Polymeric materials coated fabrics.

Test methods

DIN 53.351 Inspection of leather, artificial leather and similar flat fabrics

UNE/I.U.P.

20, I.U.P.

10+20, I.U.P.

20 Features

1 - The machine is simple to use, installed on the table, and can plug in anytime.

2 - There are 12/24 -station models, also available for low temperature models (up to -20 C).

The temperature values vary depending on the ambient temperature of the machine.

3 - Two types of selective test stations to test multiple samples at a time with a high degree of stability.

4 - The control panel has a high degree of automation, easy operation.

Technical Parameters

Items Parameters

Flexing angel 22.5

Speed 1005cpm

Instrument material Stainless steel

Surface treatment Paint spraying

External dimension 85.628cmL

Weight 41kg

Power supply 220V50Hz1A
