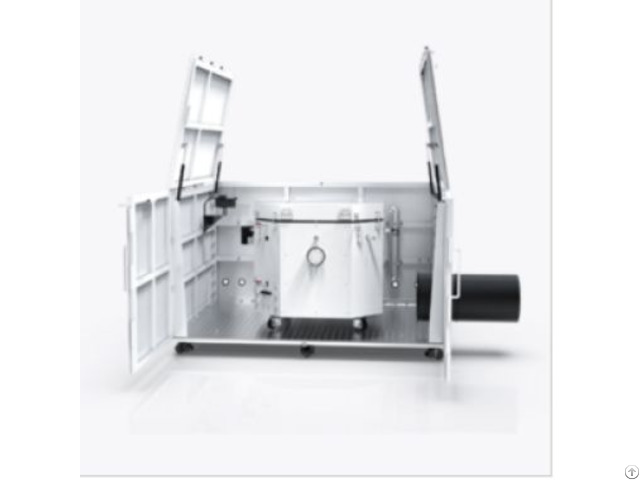

Battery Adiabatic Calorimeter Tester - China

Reference Standards

GB/T 36276 - 2023 *Lithium - ion Batteries for Electric Power Energy Storage USABC SAND99 - 0497 - July 1999: 3.2 Thermal Stability Tests SAE J2464 - R2009: 4.4.2 Thermal Stability Tests Freedom CAR SAND 2005 - 3123: 4.1 Thermal stability UL 1973 GB 38031 - 2020 *Safety Requirements for Power Batteries of Electric Vehicles Product Features

Precision: The self - heating detection sensitivity is far better than the standard detection threshold of 0.02°C/min.

It has high thermal insulation performance and a small temperature difference between the wall and the sample.

Efficiency: With an innovative heating wire assisted heating solution, the experimental efficiency can be increased by up to 5 times.

Safety: It is equipped with safety protection measures such as burst discs, pressure relief valves, and explosion - proof boxes.

The professional alarm system design comprehensively ensures the safety of personnel and equipment.

Innovation: It has the innovative function of adiabatic thermal runaway - gas production combined analysis, enabling a comprehensive acquisition of the characteristic parameters of battery thermal runaway.

Technical parameters:

Adiabatic chamber effective size: diameter 800mm, depth 520mm Self-exothermic detection sensitivity: better than 0.02℃/min Constant temperature wall sample temperature difference: ≤ 1℃ Temperature control range: RT ~ 300℃, configuration of low temperature module up to -25℃ Working pressure range: 0 ~ 2MPa Temperature tracking rate: 0.02 ~ 15℃/min Needle maximum stroke: stroke software can be set up Charge and discharge electrode column overcurrent capacity: -1000A ~ 1000A
