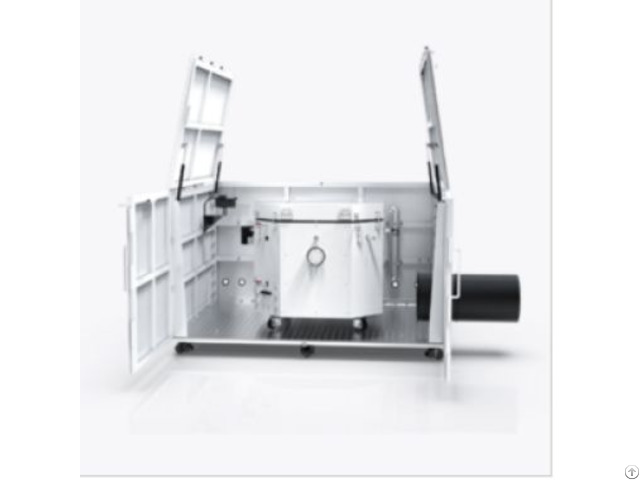

Battery Adiabatic Tester - China

Reference Standards

GB/T 36276 - 2023 *Lithium - ion Batteries for Electric Power Energy Storage UL 9540A ASTM E1981 - 98(2012) SN/T 3078.1 - 2012 *Guidelines for the Evaluation of Thermal Stability of Chemicals - Part 1: Accelerated Calorimetry Method USABC SAND99 - 0497 - July 1999: 3.2 Thermal Stability Tests SAE J2464 - R2009: 4.4.2 Thermal Stability Tests Freedom CAR SAND 2005 - 3123: 4.1 Thermal stability UL 1973 GB 38031 - 2020 *Safety Requirements for Power Batteries of Electric Vehicles Technical parameters:

Adiabatic chamber effective size: diameter 800mm, depth 520mm Self-exothermic detection sensitivity: better than 0.02℃/min Constant temperature wall sample temperature difference: ≤ 1℃ Temperature control range: RT ~ 300℃, configuration of low temperature module up to -25℃ Working pressure range: 0 ~ 2MPa Temperature tracking rate: 0.02 ~ 15℃/min Needle maximum stroke: stroke software can be set up Charge and discharge electrode column overcurrent capacity: -1000A ~ 1000A
