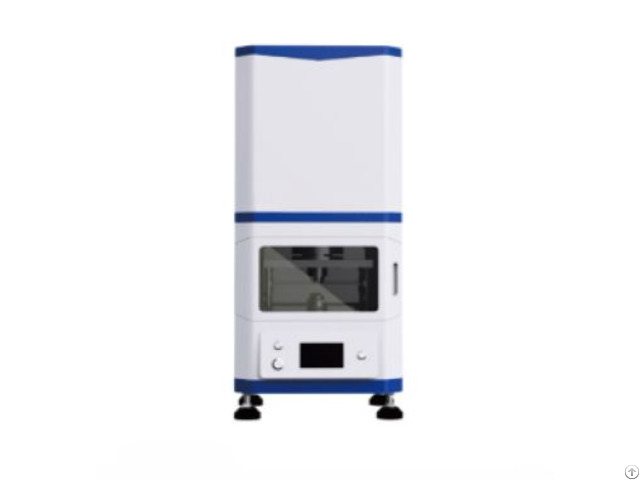

Battery Electrode Resistance Measuring Instrument - China

Standard

ASTM B193: Standard Test Method for Resistivity of Electrical Conductor Materials ISO 18516: Conductive Coatings – Measurement of Resistivity IEC 62660-1: Secondary Lithium-Ion Cells – Part 1: Performance Testing RoHS Compliance (Restriction of Hazardous Substances) CE Certification (Conformité Européenne) Product Advantages

Ultra-Sensitive Detection 0.1 μΩ Resolution: Measures resistivity as low as 1 μΩ·cm for advanced anode/cathode materials.

Four-Point Probe Technology: Eliminates contact resistance errors for pristine data.

Rapid Material Characterization 3-Second Testing Cycle: High-throughput screening for production lines.

Auto-Mapping Function: Generates 2D resistivity heatmaps of entire electrode sheets.

User-Centric Design 12.1” Capacitive Touchscreen: Multi-touch gestures for zoom/pan on live data curves.

Voice-Guided Operation: Step-by-step instructions in 8 languages (English, Korean, German, etc.

).

Industrial Durability Corrosion-Resistant Chassis: 316L stainless steel body with IP54 dust/water resistance.

Vibration-Dampening Feet: Stable operation in noisy factory environments.

Smart Connectivity IoT-Ready: Seamless integration with MES/ERP systems via MQTT protocol.

AI-Powered Analytics: Predicts battery cycle life based on resistivity trends.

Product Features

Non-Destructive Testing (NDT): Preserves electrode integrity with <1 N contact force.

Temperature Compensation: Built-in Peltier module (-10°C to 60°C ±0.5°C accuracy).

Dynamic Range Switching: Auto-adjusts between μΩ and mΩ ranges during testing.

Laser-Assisted Alignment: Guides operator for perfect probe placement on 50x50mm samples.

Accessories Included

Four-Point Probe Head: Tungsten carbide tips (0.5mm spacing) with gold-plated connectors.

Quick-release lever for rapid probe replacement.

Software Suite: License key for ResiMAP Pro (Windows/macOS/Linux).

1-year free access to cloud-based SPC (Statistical Process Control) tools.

Calibration & Safety: NIST-traceable standard resistor (10 μΩ, 100 μΩ, 1 mΩ).

Insulated gloves (Class 00 - 3 pairs).

Technical Parameters

Parameter Specification

Resistance Range 1 μΩ – 200 mΩ (auto-ranging)

Accuracy ±0.1% of reading + 0.05 μΩ

Test Current 1 mA – 1 A (programmable)

Sampling Rate 20.000 points/second

Data Interface Ethernet, USB 3.0 - RS-485 - Wi-Fi 5

Power Supply 90-264V AC, 47-63Hz (universal adapter)

Dimensions 480mm (W) × 420mm (D) × 220mm (H)

Weight 28 kg (net) / 32 kg (gross)
