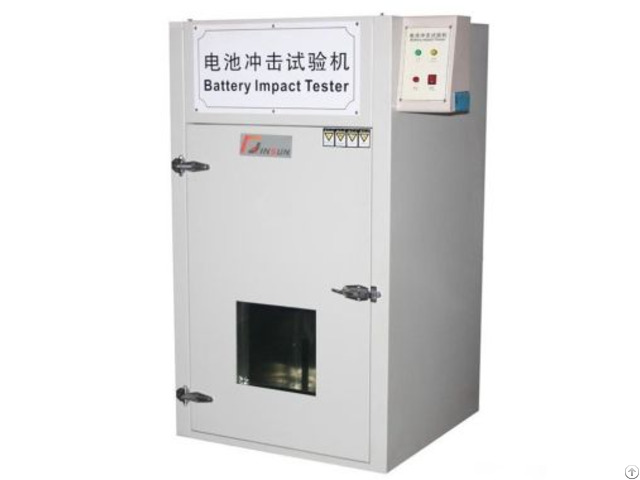

Battery Impact Chamber - China

Product Description

Battery Heavy Impact Tester is a device that can be applied to the safety testing of lithium-ion batteries and battery packs, which can realize the simulation of battery safety performance when the battery is impacted by a heavy object.

Designed for 10Kg or 9.1Kg weight, falling freely at a distance of 1m or 610mm, impacting on a metal bar with a diameter of 15.8mm (5/8 inch), with the sample of battery under test pressed vertically under the metal bar.

Functional features

Applicable standards GB31241-2014 - UN38.3 - GB/T18287-2000 - etc.

; Compatible with two kinds of weights and various height test standards, the mass of weight is adjusted by counterweight block, and the height can be set freely; Motorized hook to ensure safety, such as the need for long time maintenance operations designed mechanical safety lock; worm gears and worm gears, mechanical safety locks.

Lock; Worm gear motor drive to lift and lower the weight block, self-locking when the motor is disconnected; Double-layer explosion-proof reinforced sheet metal test box, explosion-proof pressure relief ports, explosion-proof laminated glass observation window, built-in lighting; With limit pins to prevent the weight block from falling, to ensure the safety of the operator; Selection of high-quality electrical components, to ensure the reliability of the work, with the function of switching between on-site and remote remote control operation; Test Standards

UN 38.3 IEC 62133 IEC 62619 UL1642 Technical Parameters

Power supply Voltage single-phase 220VAC±10% (110VAC can be customized), frequency 50Hz/60Hz, power 1KW Operating environment Suggested ambient temperature 25±3℃, humidity 30~90RH(%), no vibration and electromagnetic interference Test items Heavy weight impact test Test objects Button, cylindrical, flexible packaging, square lithium batteries and all kinds of lithium battery packs Applicable standards GB31241-2014 - UN38.3 - GB/T18287-2000 etc.

10Kg or 9.1Kg, can increase or decrease the weight block adjustment Max.

1000mm, can be freely set L382*W332mm, explosion-proof sandwich glass Explosion-proof pressure relief block adjustment Max.

1000mm, can be freely set L382*W332mm, explosion-proof sandwich glass T18287-2000 - etc.

Heavy mass 10Kg or 9.1Kg, can be adjusted by adding or subtracting counterweight block Impact height Max.

1000mm, can be set freely Observation window L382*W332mm, explosion-proof laminated glass Auxiliary functions Explosion-proof pressure relief port, built-in illumination, optional fire extinguisher, video monitoring function (the video monitoring function requires the customer to provide a switch with the PoE power supply standard of IEEE802.3af/at) Workspace L300mm*W250mm*H1000mm Mounting dimensions W800mm*D700mm*H1815mm Weight Approx.

300Kg
