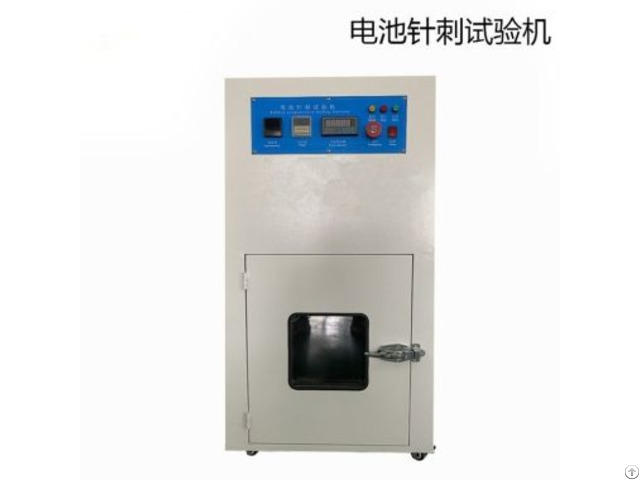

Battery Puncture Tester With Nail - China

Description

The test shall be carried out at an ambient temperature of 20°C±5°C.

Place the battery with a thermocouple (the contact of the thermocouple is fixed on the large surface of the battery) in a fume cupboard, and pierce the center of the largest surface of the battery with a non-corrosive rust-free steel needle of 2-8mm in diameter at the speed of 10mm/s-40mm/s and keep it in place for 5 seconds.

Standard

GB/T 18332.2-2001 MT/T 1051-2007 GB/T 31485-2015 "Safety requirements and test methods for power batteries for electric vehicles" GB/T 31241-2014 　 "Safety requirements for lithium-ion batteries and battery packs for portable electronic products" UN38.3 "United Nations Manual of Transport Tests and Standards for Dangerous Goods" IEC62133 "Battery (group) composed of electric cores and safety requirements for use in portable equipment" UL 1642: 2012 "Lithium Battery Standard" Specifications

1 - ф2mm-ф8mm high-temperature resistant steel needles.

2 - Distance between the tip of the needle and the lower part: 250mm from the plane where the battery is placed.

3 - 3 - Clamping distance: 150mm 4 - 10-40mm/s speed, from the direction perpendicular to the battery pole plate through (steel needle stays in the battery) 5 - penetration force: about 2000KG 6 - force display: pressure sensing LED display 7 - Stroke: about 200mm 8 - driving mode: hydraulic drive (or motor drive) 9 - made into a box-type equipment device explosion-proof, fire prevention, corrosion resistance, easy to clean.

10 - explosion-proof box size (W × H × D): about 450 × 750 × 550mm 11 - explosion-proof box material: galvanized sheet baking paint treatment 12 - machine size: about 1640 × 570 × 730mm
