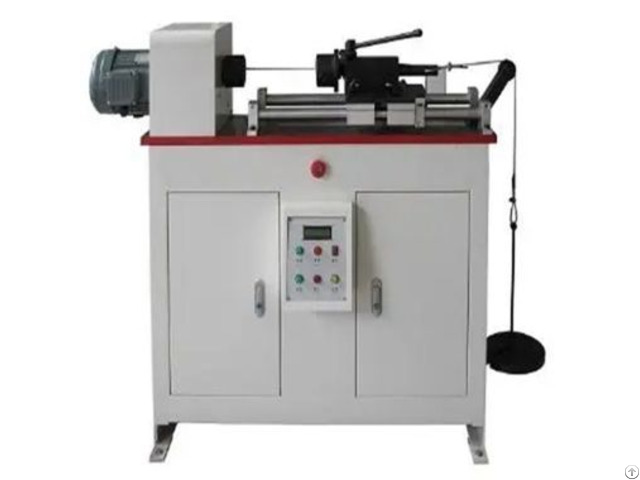

Metal Wire Coiling Test Chamber - China

According to the criteria:

GB/T 2976 "Wire winding test method for Metal Materials" ISO 4101 Cold drawn steel wire for elevator wire ropes - Technical specifications ISO 7802: 2013(E) Method of test for wire winding of metallic materials GB/T 4909.7 "Bare wire test methods - Part 7: Winding test" Product Advantages:

Evaluates Wire Ductility: Provides a direct assessment of the wire's ability to undergo plastic deformation without failure.

Detects Surface Defects: Winding under tension can reveal surface cracks or inclusions that might not be visible otherwise.

Standardized Testing: Enables testing according to widely recognized national and international standards.

Quality Control: Essential for ensuring the consistent quality and performance of metal wire production.

Relevant to Applications: Simulates forming processes relevant to how wire is used in many products.

Controlled Parameters: Allows for precise control of winding speed, tension, and number of turns for repeatable tests.

Main parameters:

1 - Working power supply: 220V/50HZ 2 - winding speed: 1-5 RPM, adjustable 3 - Number of winding cycles: 1 cycle 4 - winding wheel diameter accuracy: ±0.5mm 5 - damping system loading strength: 0-137Kg 6 - damping system torque: 190Nm
