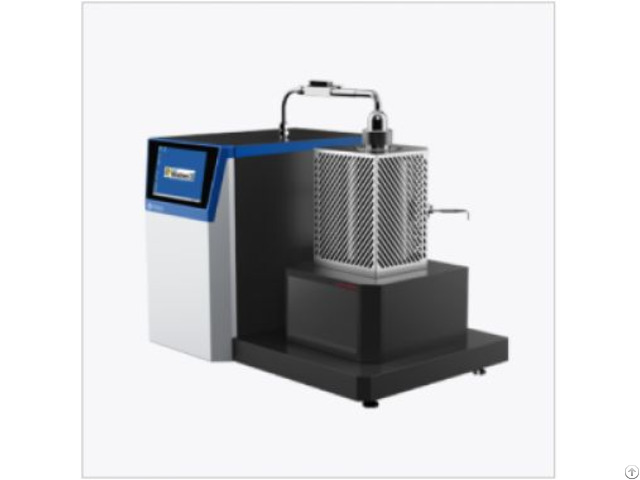

Lowest Ignition Temperature Mit Dust Cloud Tester Analyzer - China

Description

Dust Cloud Minimum Ignition Temperature Tester is mainly used to assess the explosiveness of dust in the production and processing places such as aluminum powder, zinc powder, plastic powder, intermediates of organic synthetic pharmaceuticals, wheat flour, sugar, wood chips, dyestuffs, glued wood ash, milk powder, tea powder, tobacco powder, coal dust, plant fiber dust and so on, and to accurately determine the minimum ignition temperature of the dust cloud.

Reference Standards

ASTM E1491 - 06 EN 50281 - 2 - 1 GB/T 16429 IEC 61241 - 2 ISO/IEC 80079 - 20 - 2 Product Features

1 - It has built - in commonly used international test standards, allowing for testing according to standard parameters or custom - setting.

2 - It adopts a fuzzy PID temperature - control algorithm to achieve high - precision temperature control.

3 - It is equipped with a temperature sensor calibration interface for easy calibration and correction.

4 - It uses a Godbert - Greenwald furnace with a built - in quartz tube to ensure the reliable operation of the heating furnace body.

5 - The furnace cavity is made of heat - insulating vacuum ceramic fiber, which has a good heat - insulation effect.

6 - The temperature thermocouple is from an internationally well - known brand, ensuring the long - term stable operation of the instrument.

7 - It has the function of detecting ambient temperature and humidity and automatically records experimental environment information.

8 - Remote control ensures the personal safety of experimenters.

Technical parameters

Operating environment (5 to 45)°C, <85% RH Temperature range Room temperature to 1000°C Rising time ≤20min (room temperature to 500°C) Temperature control stability ±5.0°C Temperature measurement accuracy ±3.0°C Temperature measurement precision ±0.1°C Powder spray pressure range (0 to 100)kPa Pressure accuracy ±5% Storage volume 500mL Ambient temperature measurement range (-10 to 60)°C Ambient humidity measurement range (5 to 95)% RH Interface USB*2 Power 220VAC/50Hz Power 2600W Dimensions 670mm х 400mm х 590mm
