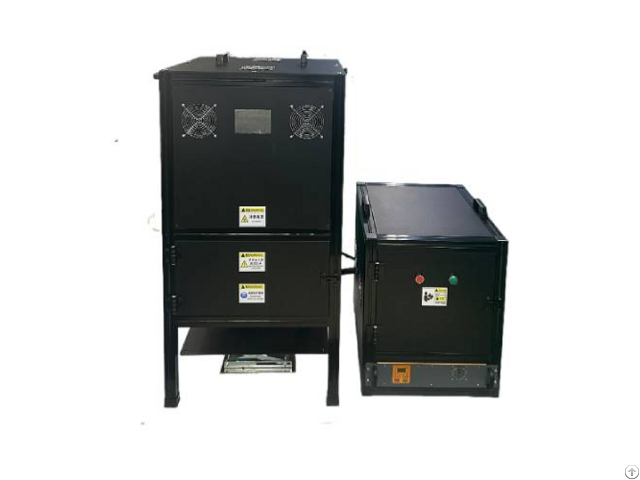

Bba Grade Desktop Vertical Solar Simulator - China
price: contact company for price
The BBA-Grade Desktop/Vertical Solar Simulator for Photovoltaic Module Testing is a high-precision, laboratory-grade device designed to simulate solar irradiation for indoor photovoltaic testing and controlled sunlight experiments.
You can use this simulator to replicate solar intensity, spectrum, and irradiance on a defined plane, enabling accurate evaluation of photovoltaic module performance, solar thermal responses, photochemical reactions, and plant growth studies.
Its compact desktop or vertical configuration ensures convenient operation while maintaining high accuracy, stability, and versatility across diverse indoor applications.
Standards
(1) IEC 60904-9 – Photovoltaic Devices: Requirements for Solar Simulators (2) ASTM E927 – Laboratory Simulation of Solar Radiation (3) IEC 60904-3 – Measurement of Photovoltaic Current-Voltage Characteristics (4) ISO 9060 – Solar Irradiance Measurement Standards (5) ASTM G173 – Reference Solar Spectra for Testing (6) JIS C 8912 – Performance Guidelines for Solar Simulators Technical Parameters
Performance Item Technical Specification
Simulator Type Desktop / Vertical BBA-Grade
Light Source Type High-brightness LEDs with multi-channel spectral control
Light Source Lifespan ≥20, 000 hours
Illuminated Area Adjustable plane, typical: 0.3 × 0.3 m up to 1 × 1 m
Maximum Irradiance Up to 1000 W/m², user-adjustable
Minimum Irradiance 100 W/m²
Spectral Range 400–1100 nm (adjustable for BBA grade)
Spectral Matching Class BBA standard, multi-channel LED control
Light Uniformity ±2% across effective test plane
Control Modes Manual, Programmed, Timed Flash Modes
Equipment Dimensions Desktop: 0.8 × 0.5 × 0.7 m; Vertical: 1.2 × 0.6 × 1.8 m
Operating Voltage 220 V ±10% AC, 50/60 Hz
Cooling System Integrated air cooling with thermal protection
Company Contact:
- Posted By: Qinsun Instruments Co., LTD
- Phone: +8618501763615
- Address: Minhang District, Shanghai , China
- Email:
- Website: https://www.qinsun-lab.com/
Published date: April 16, 2026
- Business Description: Qinsun Instrument focus on creative high quality textile testing instrument, with our powerful teamwork,constantly innovation, practical efficiency and excellent service, our mission is to supply our customers and distributors with the integrated solutions of lab testing.
