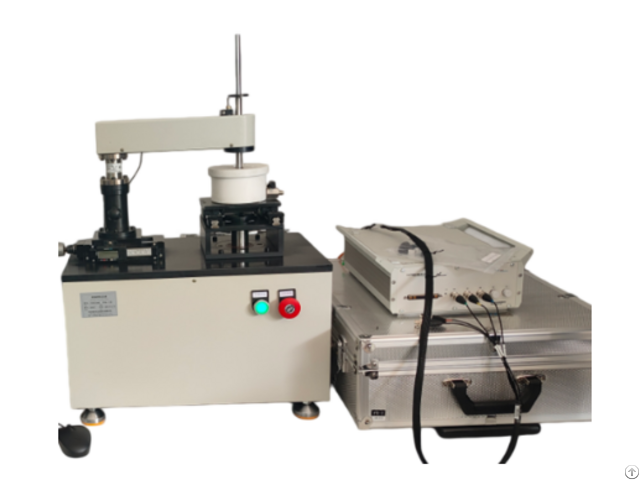

Corrosion And Wear Testing Machine - China

Electrochemical corrosion and wear testing machines are widely used in materials science, mechanical engineering, electronic engineering, aerospace, and other fields.

These devices can evaluate the tribological performance of materials in specific corrosive environments, helping researchers and engineers select, improve, and protect materials.

Standard

(1)ASTM G119: A standard for evaluating synergistic corrosion-wear performance, particularly for biomedical implants in simulated body fluids.

(2)ASTM G99: A pin-on-disc friction test method to measure material friction coefficients and wear resistance across industries like automotive and aerospace.

(3)ISO 20808: A ball-on-disc test protocol for characterizing friction and wear behavior of monolithic advanced ceramics in precision engineering applications.

Parameters

Parameter Specification

Test Load Range 30–1000 g (weight loading); 10–50 N (automatic)

Accuracy 0.2% FS (full scale)

Sliding Frequency 0.1–5 Hz

Stroke Adjustment 0.5–25 mm (reciprocating)

X/Z-Axis Travel X: 0–40 mm; Z: 0–150 mm

Sample Sizes Lower: 30–80 mm; Upper: Ф4–Ф6 mm

Electrolyte Capacity 300 ml

Friction Measurement ≤50 N; 0.2% FS accuracy

Main Unit Dimensions 400 mm (W) × 300 mm (D) × 600 mm (H)

Weight 50 kg

Power Supply 220 VAC ±10%, 50/60 Hz, 1.5 kVA

Environmental Control Temperature: -10°C–100°C (optional upgrade)
