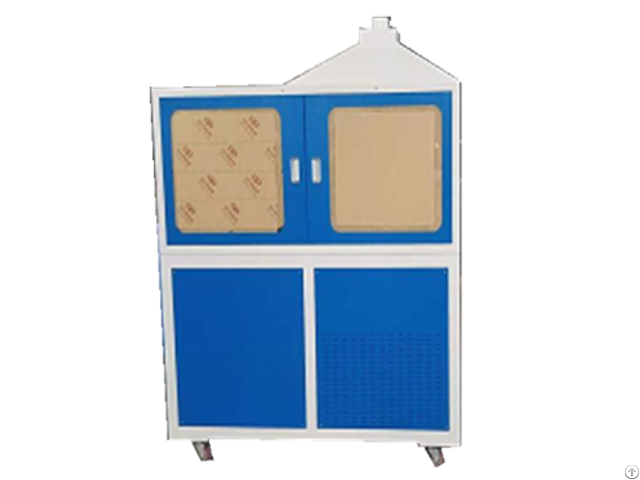

Conveyor Belt Drum Friction Tester - China

The conveyor belt drum friction testing machine has extensive application value in multiple fields.

Its main purposes include: Evaluating Conveyor Belt Performance This equipment is mainly used to evaluate the performance of conveyor belts under drum friction conditions, especially their anti – friction, anti – wear, and flame – retardant properties.

By simulating the friction conditions in actual working environments, it can test the durability and reliability of conveyor belts, providing data support for product optimization design.

Material Selection and R & D During material research and development, the conveyor belt drum friction testing machine can be used to screen materials with excellent wear – resistance and anti – friction properties.

By comparing the test results of different materials, it can provide a scientific basis for material selection and reduce product R & D costs.

Optimization Design Based on the test results, the structure and materials of conveyor belts can be optimized to improve their service life and performance.

At the same time, it can also provide improvement suggestions for drum design to reduce friction loss and energy consumption.

Scientific Research and Teaching In the field of scientific research, the conveyor belt drum friction testing machine can be used for research on friction and wear mechanisms, material surface modification, etc.

In teaching, this equipment can be used to cultivate students’ practical abilities and scientific research qualities, improving the quality of teaching.

Standards

(1) MT 914-2008 (Solid woven flame-retardant conveyor belts for coal mining)

(2) GB/T 7986-1997 (Drum friction test method for conveyor belts)

(3) MT 450-1995 (Steel cord conveyor belt flame retardant and antistatic test method)

(4) MT 668-2008 (Steel cord flame-retardant conveyor belts for mining)

(5) MT 830-2008 (Fabric layered flame-retardant conveyor belts for mining) Parameters

Item Specification

Drum Diameter Φ210 ± 0.5 mm

Motor Power 11 kW

Drum Speed 200 ± 5 r/min

Blower Power 220V, 25W

Tension Weight 343 N per unit

Distance (Pipe to Drum) 600 mm

Airflow Measurement Handheld anemometer

Temperature Display display

Perforated Pipe Φ40 mm (inner), hole Φ6 mm, 21 holes, spacing 13 mm

Temperature Sensors 3 units (2 spare)
