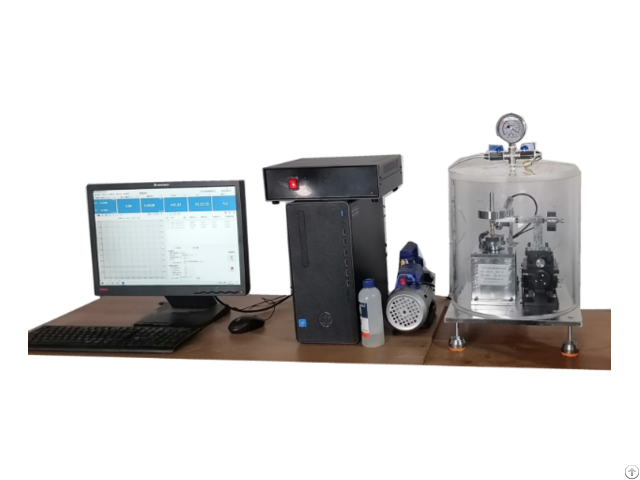

Vacuum Ball Disk Friction Tester - China
price: contact company for price
The vacuum ball – disk friction tester is a device specifically used for evaluating the sliding friction coefficient of point contact and the wear life of materials under vacuum and different atmospheric environment conditions.
Its main purposes include: Material Friction Performance Evaluation – Simulate the actual friction conditions of materials in a vacuum or specific atmospheric environment, test the friction coefficient of materials, and evaluate their friction performance.
– Test the friction behavior of materials under different loads and speeds to obtain friction performance data, providing a basis for material research, development, and optimization.
Standards
(1)ASTMD4172-94: Standard Test Method for Wear Preventive Characteristics of Lubricating Fluid (Four-Ball Method) (2)ASTMD2266-91: Standard Test Method for Wear Preventive Characteristics of Lubricating Grease (Four-Ball Method) (3)SH/T0189-92: Test Method for Anti-wear Performance of Lubricating Oils (Four-Ball Machine Method) (4)ASTM G99: Standard Test Method for Wear Testing with a Pin-on-Disk Apparatus Parameters
Items Details
Test Standard ASTM G99 - G133 - G59 - G102 - G119
Load 0.25 – 200N
Speed 0.1 – 3000rpm
Friction Force (presumably a specified test condition) 100N
Size 650mm * 400mm * 700mm
Weight 80KG
Power Supply 220V/50Hz
