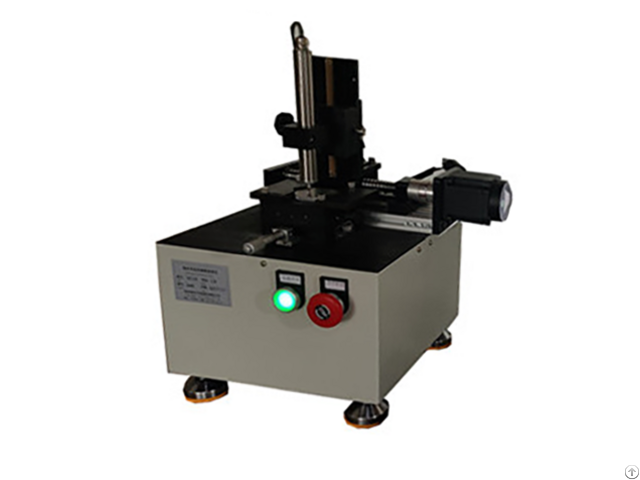

Wear Track Profilometer For Worn Surfaces - China
price: contact company for price
A wear profiler is a device used to measure the characteristics of worn surfaces, providing high-precision wear rate measurements.
It provides reliable data for selecting the optimal material by accurately measuring the wear condition of coatings or substrate materials.
Standards
(1)ASTM G99-17：Standard Test Method for Wear Testing with a Pin-on-Disk Apparatus (2)ISO 25178-2: 2012：Geometrica l product specifications (GPS) — Surface texture: Areal — Part 2: Terms, definitions and surface texture parameters (3)GB/T 12444-2006：Metallic materials – Wear test method – Block-on-ring sliding wear test (4)ISO 20808: 2016：Fine ceramics (advanced ceramics, advanced technical ceramics) — Determination of friction and wear characteristics of monolithic ceramics by ball-on-disc method (5)GB/T 17754-2016：Friction and wear testing—Terminology Parameters
Description Details
Abrasion scanning method Automatic
Longitudinal resolution of scanning probe 0.02μm
Wear test force range ≦40g
Longitudinal measurement range of scanning probe ±0.5mm (Measurement range can be changed according to the user’s requirements)
X-axis travel range 0～50mm
Y-axis travel range 0～25mm
Z-axis travel range 0～50mm
Size of sample tray Φ76mm
Dimensions of the main body of the instrument 230300260
Weight of main body of the instrument (Kg) 10
Company Contact:
- Posted By: Qinsun Instruments Co., LTD
- Phone: +8618501763615
- Address: Minhang District, Shanghai , China
- Email:
- Website: https://www.qinsun-lab.com/
Published date: April 16, 2026
- Business Description: Qinsun Instrument focus on creative high quality textile testing instrument, with our powerful teamwork,constantly innovation, practical efficiency and excellent service, our mission is to supply our customers and distributors with the integrated solutions of lab testing.
