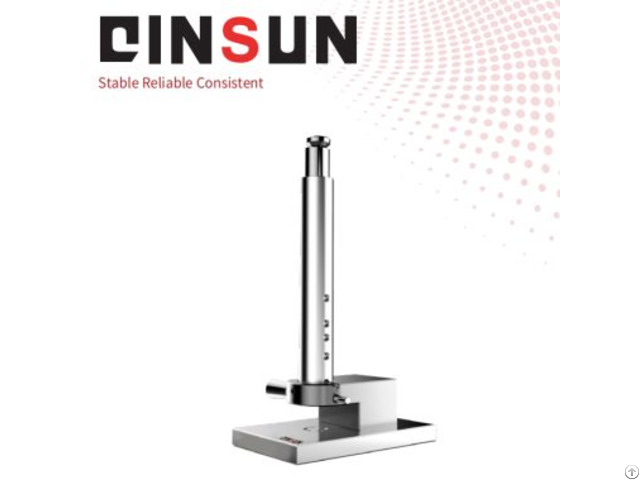

Button Impact Machine - China

Standards:

ASTM D5171: Test Method for Abrasion Resistance of Inks and Coatings (referenced for impact-related durability assessments).

Application:

Button falling weight impact tester is used to determine the impact resistance of plastic sew-through flange buttons to a falling mass of 0.84kg (29.5oz), released from a height of 67mm (2.625 inches) or other heights as required.

Evaluation Cracking, chipping and breakage, any of which constitutes damage.

Test the remaining specimens.

Product Information:

With the equipment the impact resistance of plastic sew-through flange buttons can be determined that a falling mass of 0.84kg (29.5oz) is released from a height of 67mm (2.625inch) or other heights as required.

Cracking, chipping or breakage constitute failure.

Features:

1 - Ensure the vertical alignment of tension; 2 - Fixed button edge without affecting its adhesion; 3 - Consistent force of 10s continuously; 4 - Elevate and fix the position of the test meter through the handle, easy to change samples 5 - Horizontal hand wheel, designed to cooperate with ergonomic principles to make operators more comfortable; 6 - Safety buckle design makes operation more secure and reliable; 7 - The long machine frame can extend the test scope more widely; 8 - The concealed spring is designed to greatly increase the pin tightening and ensure the test repeatability; 9 - Can reduce the damage caused by slid leakage during test process; 10 - Simple design and accurate test results.

Technical Parameter

Parameter Specification

Operating Mode Manual

Impact Head Weight 0.84kg

Impact Height 32mm, 44mm, 67mm, 83mm, 95mm, 117mm

Body Material Stainless Steel / Brushed Finish

Instrument Weight 5kg

Power Supply No (Manual Operation)

Appearance Size 100mm (L) × 150mm (W) × 300mm (H)
