Camera Test Light Box Meter - China

Standard

ISO 12233: Compliant with SFR (Spatial Frequency Response) testing for lens resolution.

IEC 62679: Photometric requirements for video camera performance evaluation.

CIE 15: Colorimetry standards for LED source spectral calibration.

Product Advantages

1 - Multi-Angle Camera Calibration Adjustable Field of View: Test ultra-wide to telephoto lenses (70°–180° FOV) using a single chart.

Motorized Sliding Stage: ±50mm travel with locking mechanism for precise positioning.

2 - Uniform Illumination Control Bi-Directional LED Panels: 6.500K ±200K (standard) with 5.000K–9.500K optional.

360° Tilt Functionality: Manual rotation via butterfly nuts for backlight optimization.

3 - Modular Test Environment Magnetic Chart System: Supports 2x ISO 12233 charts (712mm × 400mm) and custom fisheye targets.

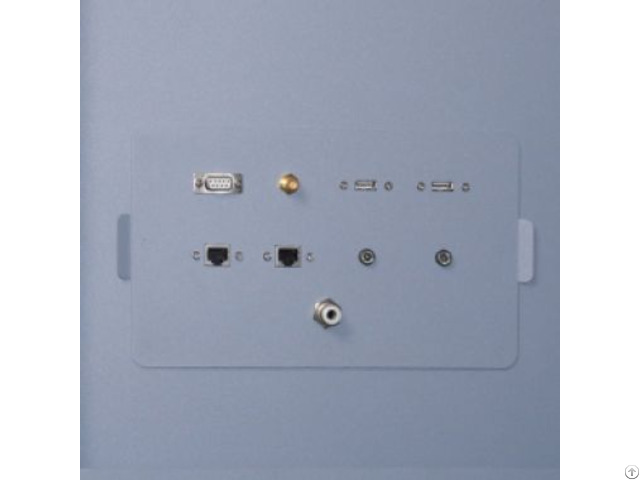

Integrated I/O Panel: Pre-wired RS232 - USB 3.0 - and Ethernet ports for device connectivity.

4 - Industrial-Grade Build Neutral Gray Enclosure: Minimizes reflections for accurate MTF (Modulation Transfer Function) analysis.

130kg Robust Construction: Welded steel frame with anti-vibration leveling feet.

5 - Energy Efficiency 160W Max Consumption: 80% less energy vs.

traditional xenon light sources.

50.000-Hour LED Lifespan: Maintains CRI >94 across all color temperatures.

Product Features

Optical System: Dual LED Panels: 300mm × 400mm each with independent brightness control.

Diffusion Technology: Hollow-glass beads reduce hotspots by >90%.

Camera Stage: Linear Rails: 600mm travel with 0.1mm resolution scale.

Quick-Release Clamps: Accommodates 1/4”-20 and M6 threaded mounts.

Control Interface: 4-Channel Dimmer: 0–100% linear adjustment with memory presets.

Emergency Stop: Mushroom-head button with E-Stop loop monitoring.

Safety Systems: Overheat protection at 50°C with auto-shutoff.

Residual current device (RCD) for operator safety.

Connectivity: 2 × USB 3.0 ports for camera tethering.

Gigabit Ethernet for remote control via PC software.

Technical Parameters

Specification Details

Work Area 1.106mm × 1.001mm × 800mm (W×D×H)

Window Size 447mm × 700mm (W×H)

Color Temps 2.800K–9.500K (adjustable)

CRI (Ra) >94 (6.500K standard)

Power Supply 220V/50Hz (110V optional)

Dimensions (W×D×H) 1.150mm × 1.045mm × 1.728mm

Weight 130 kg (net)

Operating Conditions 0–40°C, <85% RH (non-condensing)
