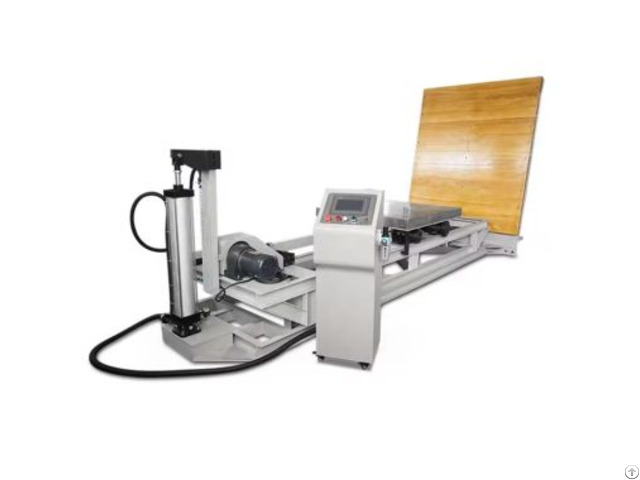

Incline Impact Meter - China

Standard ASTM D7748: Impact resistance testing of packaging and transport systems.

ISO 13355: Automotive component durability evaluation under oblique load conditions.

ISTA 3E: Simulates truck collision scenarios for palletized freight testing.

Product Advantages

1 - Rapid Precision Deployment

Pneumatic Positioning: Sub-0.1mm repeatability for crash velocity calibration.

Tool-Free Adjustment: Dial-in impact speeds from 2–12 ft/sec (0.6–3.7 m/s).

2 - Modular Impact Configuration

6 Load Capacities: 1, 000–10, 000 lbs (454–4, 536 kg) for consumer goods to industrial machinery.

Scalable Collision Surfaces: Up to 96” × 96” (2.4m × 2.4m) for full-scale product testing.

3 - Advanced Data Acquisition

4-Channel TLP System: 100 kHz sampling rate captures peak G-forces and deformation.

Bi-Directional Velocimetry: 1, 000VM laser sensor with 0.01 ft/sec resolution.

4 - Ergonomic Workflow

Low-Profile Sled: 8” ground clearance for forklift-free specimen loading.

Self-Centering Guides: Automatic alignment for repeatable impact angles.

5 - Industrial Durability

Hardened Steel Targets: AR500-grade collision plates resist deformation.

Sealed Drive System: IP67-rated motor for dusty/wet environments.

Product Features

Impact System:

Pneumatic Launcher: 0–8 ft/sec (0–2.4 m/s) in 0.1 ft/sec increments.

Fail-Safe Braking: Hydraulic deceleration system with 10g emergency stop.

Data Acquisition:

TLP Pro Software: Real-time force-time curves and energy dissipation analysis.

Unit Conversion: Toggle between imperial (lbs, ft/sec) and metric (kg, m/s).

Safety Systems:

Enclosure interlocks with laser safety curtains.

Overload protection at 110% of rated capacity.

Sled Design:

Reinforced steel frame with replaceable aluminum impact face.

Adjustable height collars for 0°–15° oblique angles.

Mobility:

Forklift pockets and lifting eyes for warehouse relocation.

Collapsible guardrails for narrow-aisle storage.

Technical Parameters

Model Load Capacity Collision Surface Sled Size Max.

Speed Simulated Drop Height

Ⅱ1000 1, 000 lbs 60” × 60” 48” × 48” 8 ft/sec 18”

Ⅱ2000 2, 000 lbs 72” × 72” 60” × 60” 8 ft/sec 18”

Ⅱ4000 4, 000 lbs 84” × 84” 72” × 72” 8 ft/sec 18”

Ⅱ6000 6, 000 lbs 84” × 84” 72” × 72” 8 ft/sec 18”

Ⅱ8000 8, 000 lbs 84” × 84” 72” × 72” 8 ft/sec 18”

Ⅱ10000 10, 000 lbs 96” × 96” 84” × 84” 8 ft/sec 18”
