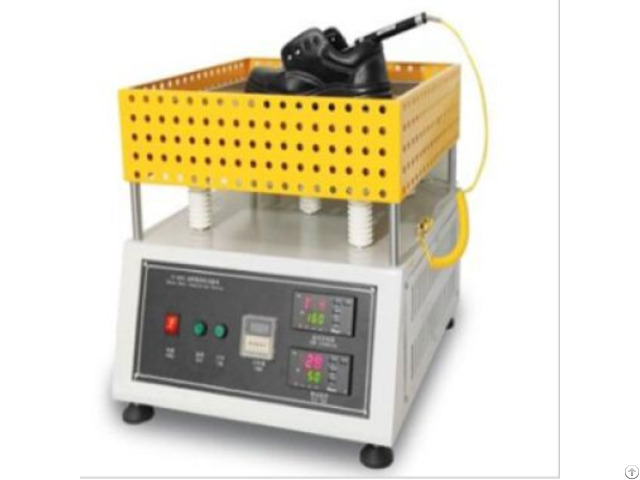

Shoe Heat Insulation Machine - China

Standard

GB/T 20991: Determines thermal insulation of safety shoe soles under simulated hot surface exposure.

EN ISO 20344: European standard for personal protective equipment (PPE) footwear thermal resistance testing.

Product Advantages

1 - Accredited Thermal Performance Analysis Dual-Standard Compliance: Meets stringent Chinese and EU regulations for global market access.

Traceable Calibration: NIST-traceable temperature verification with certificate.

2 - Realistic Testing Conditions Granular Heat Transfer: Simulates contact with hot surfaces (e.g., asphalt, metal) via industrial-grade silica sand.

Steel Ball Simulant: Replicates foot pressure distribution inside the shoe.

3 - Safety-First Design Insulated Enclosure: Heat-resistant acrylic shield with interlock safety switches.

Emergency Cooldown: Auto-shutoff at 60°C surface temperature.

4 - Precision Control PID Temperature Regulation: ±0.5°C stability across 50–200°C range.

Fast Response Probes: K-type thermocouples with 0.1°C resolution.

5 - User-Centric Workflow Plug-and-Play Sensors: Pre-calibrated probes with color-coded connectors.

Intuitive Interface: 4.3” TFT display with real-time temperature curves.

Product Features

Sand Bath System: Heated Plate: 300mm × 300mm aluminum plate with 50mm silica sand layer.

Uniform Heating: Embedded cartridge heaters with thermal diffusers.

Temperature Control: PID controller with auto-tuning for rapid setpoint convergence.

Over-temperature alarm with 5°C differential protection.

Sensing Suite: 2 × K-type thermocouples for sand bath and shoe interior.

1.5m cable length for flexible probe placement.

Safety Systems: Category II electrical safety certification (EN 60529).

Residual current device (RCD) for operator protection.

Software Bundle: ThermShoe Pro™: Auto-calculates thermal gradient (°C/min) and insulation index.

Cloud PPE: Remote monitoring for global R&D teams.

Technical Parameters

Specification Details

Heat Plate Dimensions 300mm (L) × 300mm (W) × 50mm (H)

Temperature Range 50°C to 200°C (adjustable in 1°C increments)

Control Accuracy ±0.5°C (±0.1°C with calibration kit)

Sand Layer Depth 50mm (industrial silica sand included)

Steel Ball Load 5kg total (100 × 50g balls, 316L stainless)

Power Supply 220V/50Hz (110V/60Hz available)

Dimensions (W×D×H) 400mm × 400mm × 600mm

Weight 35 kg (net)
