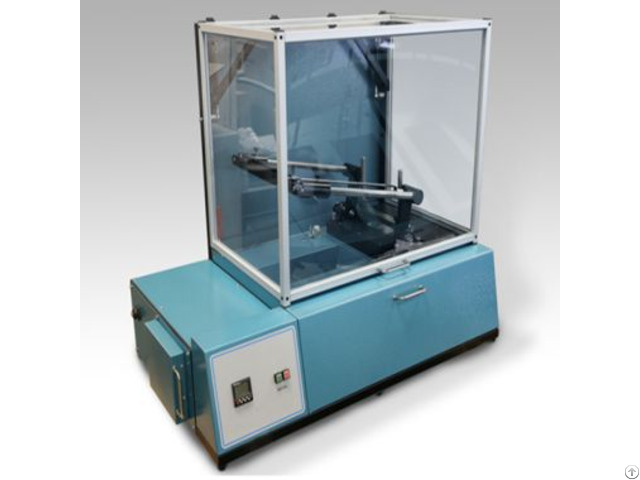

Shoe Shank Stiffness Meter - China

Standard

SATRA TM256: Flexural and torsional stiffness testing for athletic, safety, and casual footwear.

SATRA TM194: Dynamic fatigue resistance evaluation for shoe midsole and outsole integrity.

Product Advantages

1 - Dual-Mode Testing Longitudinal & Torsional Stiffness: Simultaneously measures bending resistance (flex) and twist rigidity in a single cycle.

Universal Compatibility: Adapts to all shoe types—running, hiking, work, and orthopedic footwear.

2 - High-Speed Automation 30 Cycles/Minute: Industrial-grade motor for rapid fatigue testing (0–50° flex angle).

Zero-Drift Actuators: Maintains ±0.1° angular accuracy over 100.000 cycles.

3 - Precision Sensing Strain Gauge Technology: 0.01 N·m resolution for torque and 0.1° angular feedback.

Self-Compensating Algorithms: Corrects for specimen slippage and hysteresis.

4 - User-Centric Workflow 7” Touchscreen HMI: Pre-loaded SATRA protocols with adjustable test parameters.

Real-Time Curve Tracing: Live plots of torque vs.

angle during testing.

5 - Advanced Data Management USB/PC Connectivity: Export raw data, cycles-to-failure, and stiffness coefficients.

Cloud Integration: Wireless sync to LIMS platforms for collaborative R&D.

Product Features

Dynamic Testing System: Servo-electric actuator with 0–50° programmable flex range.

360° torsion axis with ±180° rotational limits.

Precision Fixturing: Quick-change shoe clamps for US Men’s 5–15 (EU 38–50) sizes.

Adjustable torsion line alignment for varied shoe geometries.

Sensor Suite: 1.000 N load cell for flexural force measurement.

50 N·m torque sensor with overload protection.

Software Bundle: ShoeFlex Pro™: Automated stiffness coefficient calculation (ASTM D790 equivalent).

Fatigue Analyzer: Predicts lifespan via stress-cycle (S-N) curve modeling.

Safety Systems: Emergency stop with E-Stop loop monitoring.

Over-torque shutdown at 110% of rated capacity.

Technical Parameters

Specification Details

Flex Angle Range 0° to 50° (adjustable in 1° increments)

Torsion Range ±180° (360° continuous rotation)

Test Speed 30 cycles/minute (1–60 Hz adjustable)

Load Capacity 1.000 N (flex)

Angular Accuracy ±0.1° (±0.05° with calibration kit)

Power Supply 220V/50Hz (110V/60Hz available)

Dimensions (W×D×H) 600mm × 500mm × 1.100mm

Weight 95 kg (net)
