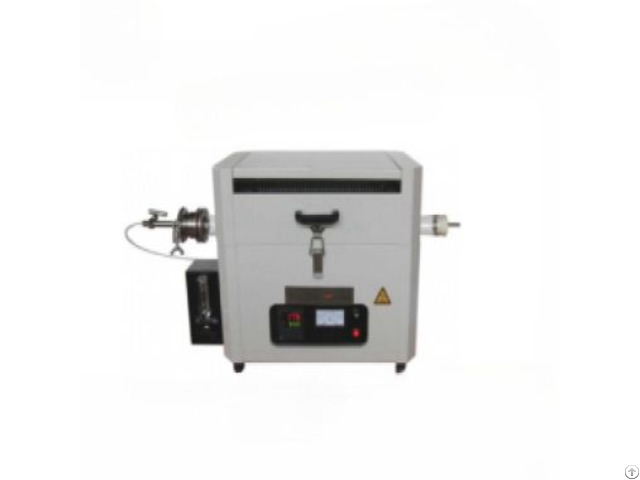

Carbon Black Content Measuring Instrument - China

Scope of application:

Used to determine the carbon black content of rubber, polyolefin plastics, polyolefin pipes and fittings, and raw materials used in manufacturing polyolefin pipes and fittings.

Carbon black is a good UV stabilizer, the best light absorber and light screen agent, which can effectively improve the anti-ultraviolet and anti-aging properties of plastic products, the content of carbon black and the dispersion of carbon black in the plastic medium, which will have a decisive impact on the UV protection, mechanical properties and life of plastic products.

Therefore, the determination of carbon black content in plastic products has extensive scientific research significance and application value.

In the test, a certain amount of samples were pyrolyzed in a high temperature atmosphere of nitrogen for a certain time, and then calcined under high temperature through air or oxygen.

The carbon black content of the sample was calculated according to the mass difference before and after pyrolysis and firing.

Meet the standard:

GB/T13021-1991.

1S0 6964-1986.

GB/T2951.41-11-2008.

IEC60811-4-1-2004.

JTG E50 1165-2006 - ASTM D1603-2006 - etc.

Instrument features: The optimized heating furnace body has beautiful appearance, stable performance and reliable quality.

Open-type furnace door structure, convenient loading sample and determine the best position of the sample; Intelligent temperature control system, automatic temperature rise, high precision temperature control; Can set up to 30 groups of temperature program segment, set different heating temperature, heating rate, constant temperature time; Furnace temperature uniformity is good, with excellent constant temperature function; The two ends of the furnace body are provided with cooling air duct, which is conducive to heat dissipation and sample cooling, improving safety and convenience; Float type gas flowmeter is used to facilitate quick switching of two gas channels, adjust gas flow, short stability time and durable.

Technical parameters:

The structure of the furnace door is open Maximum temperature 1000℃ Temperature control accuracy ±1 ° C The length of the heating zone is 300mm Length of constant temperature zone 200mm Heating element resistance wire Quartz tube size 50x750mm can be customized Air source Nitrogen, oxygen (user provided) Flow adjustment range 0.1-0.8L/min Power supply AC220V 50Hz Overall dimensions 670x350x460mm Weight 30kg
