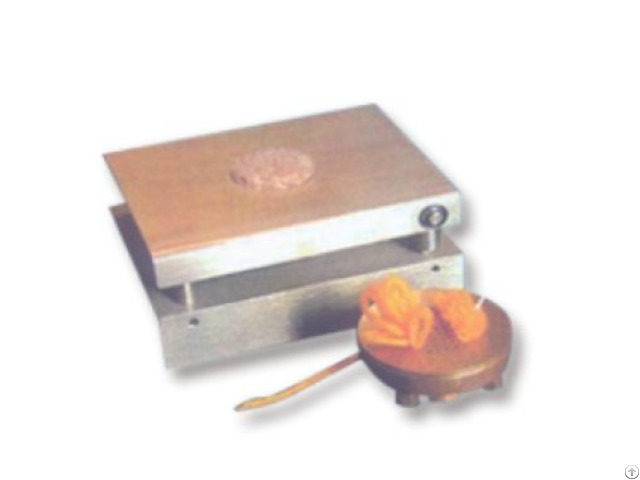

Carpet Abrasion Resistance Meter - China

Standard

ASTM D4157 (Standard Test Method for Abrasion Resistance of Textile Fabrics (Oscillatory Cylinder Method))

ISO 12947-2 (Textiles - Determination of Abrasion Resistance - Part 2: Martindale Method)

EN 14465 (Resistance to Abrasion for Carpets)

Product Advantages

Unmatched Precision

High-resolution load sensor (±0.1N accuracy) and programmable test cycles deliver repeatable results for wool, synthetic, and blended carpets.

Adaptive Testing Modes

Supports rotary (ASTM D4157) and planar (ISO 12947) abrasion methods to replicate light residential use to heavy commercial traffic.

User-Centric Design

7-inch touchscreen control panel with multilingual support (English, German, Spanish, Chinese) and real-time data visualization.

Industrial-Grade Durability

Stainless steel test chamber, corrosion-resistant components, and anti-vibration feet ensure long-term reliability in busy labs.

Cost-Efficient Maintenance

Modular design allows easy replacement of abrasive heads and clamps, minimizing downtime and operational costs.

Technical Parameters

Parameter Specification

Test Speed Range 10–120 rpm (±1 rpm accuracy)

Load Capacity 1–50 N (adjustable in 0.1N increments)

Sample Size (Rotary) Up to 500mm diameter

Sample Size (Planar) 300×300mm

Abrasive Head Diameter 150mm (standard Martindale H-18)

Power Supply 100–240V AC, 50/60Hz, 300W

Dimensions (L×W×H) 600×500×800 mm

Weight 90 kg

Operating Environment 15–35°C, ≤85% RH (non-condensing)

Accessories Included

Abrasive Heads (2 pcs): Standard H-18 (planar) and CS-17 (rotary) for versatile testing.

Sample Clamps (3 sets): For loop-pile, shag, and flat-weave carpets.

Dust Cover: Transparent acrylic shield for operator safety.

Calibration Kit: Weight set and gauge for annual equipment verification.

User Manual & Software: Digital guide (multilingual) + PC software for advanced data analytics and ISO-compliant report generation.

Ideal For: Carpet manufacturers (residential, commercial, hospitality)

Textile testing laboratories

Flooring retailers requiring durability certifications

Architectural firms specifying high-traffic carpets
