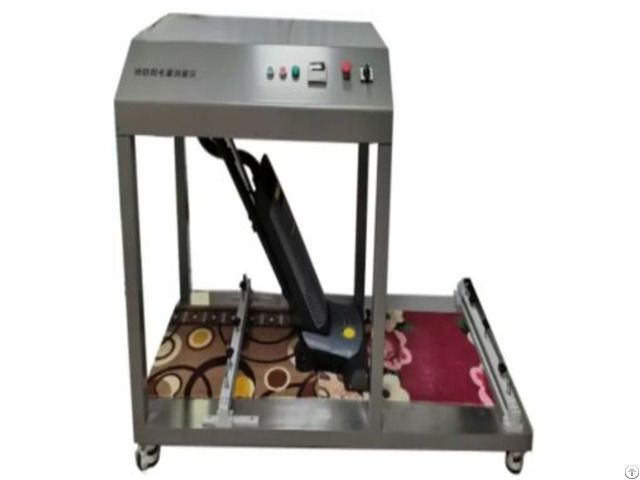

Carpet Hair Removal Measurement Device - China

Standard

ASTM D5417 (Standard Test Method for Quantifying Loss of Fiber from Carpets)

ISO 10362 (Textile Floor Coverings - Determination of Fiber Loss)

IWCS-104 (International Wool & Carpet Standard for Shedding Resistance)

Product Advantages

Precision Fiber Loss Analysis

High-resolution optical sensor (±0.01g accuracy) captures even minute fiber shedding, ideal for delicate wool, synthetic, and blended carpets.

User-Centric Design

5-inch color touchscreen with intuitive navigation and multilingual support (English, French, Arabic, Japanese) for global accessibility.

Rugged Build Quality

Anodized aluminum housing and anti-static test chamber resist dust accumulation and ensure long-term durability.

Versatile Testing Modes

Supports both dry rubbing and wet agitation tests to simulate real-world conditions like vacuuming, foot traffic, and cleaning.

Cost-Effective Operation

Low-maintenance design with replaceable abrasive pads and minimal calibration requirements.

Product Features

Advanced Testing Modes:

Adjustable test cycles (1–999 rotations) and pressure settings (0.5–5 kPa) to replicate light residential use to heavy commercial wear.

Real-time fiber loss tracking with graphical data output for immediate analysis.

Safety & Compliance:

Overload protection, automatic shutoff after preset cycles, and CE/FCC certification for safe laboratory use.

Data Management:

Onboard storage for 5, 000+ tests, exportable via USB/Wi-Fi in Excel/PDF formats.

Compatible with LIMS (Laboratory Information Management Systems).

Universal Sample Compatibility:

Adjustable clamp system accommodates carpets up to 1m² in size, including shag, loop pile, and cut-pile designs.

Technical Parameters

Parameter Specification

Measurement Range 0.01–100 g (fiber loss)

Test Cycle Range 1–999 rotations (adjustable)

Pressure Settings 0.5–5 kPa (±0.1 kPa accuracy)

Optical Sensor Resolution 0.01g

Power Supply 100–240V AC, 50/60Hz, 150W

Dimensions (L×W×H) 450×350×600 mm

Weight 45 kg

Operating Environment 10–40°C, ≤75% RH (non-condensing)

Accessories Included

Abrasive Pads (10 pcs): Standardized pads for dry/wet testing (ISO-compliant).

Sample Clamps (2 sets): For securing loop-pile and shag carpets during testing.

Cleaning Kit: Brush, vacuum nozzle, and lint-free cloth for post-test maintenance.

Calibration Weight: 100g NIST-traceable weight for annual verification.

User Manual & Software: Digital guide (multilingual) + PC software for advanced data analytics and report generation.

Ideal For: Carpet manufacturers (wool, synthetic, blended fibers)

Textile testing laboratories

Quality control departments in home furnishing brands

Retailers requiring shedding resistance certifications
