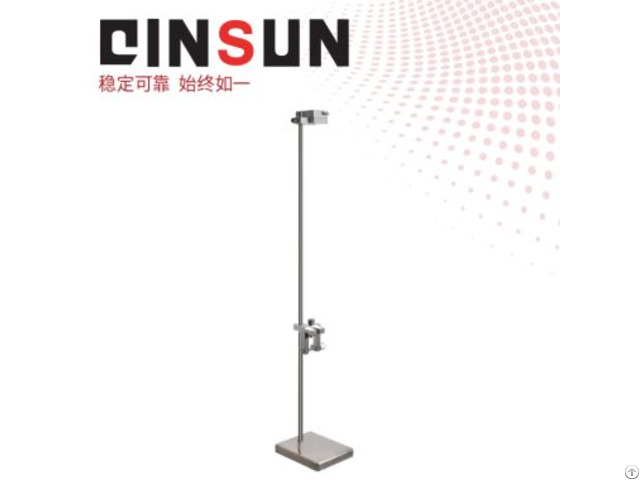

Catheter Strength Meter - China

Compliance Standard

YY 0325-2016 "Single-use Sterile Urinary Catheters" Testing Scope

Nominal specifications Wall thickness measurement Span setting Load configuration Print settings Testing procedure

Movement control (up/down) Timing functions Calibration system Technical Parameters

Parameter Category Specifications Interface Language Simplified Chinese/English Nominal Specifications All specifications supported Load Range 0.01～120N Accuracy ±0.001N Loading Speed 0-500mm/min ±0.5mm/min Printing System Stores 100 test records per cycle (data + deviation values) Net Weight 15kg Dimensions 430×290×250mm Power Supply AC110V-220V/50Hz (auto-adaptive) Power Consumption 70W Control System PLC+ARM programmable controller Touchscreen 7-inch K600+ core, 800×480 resolution (65k colors) Sensor High-precision force transducer Force Measurement Built-in load cell system Printing Device Onboard thermal printer
