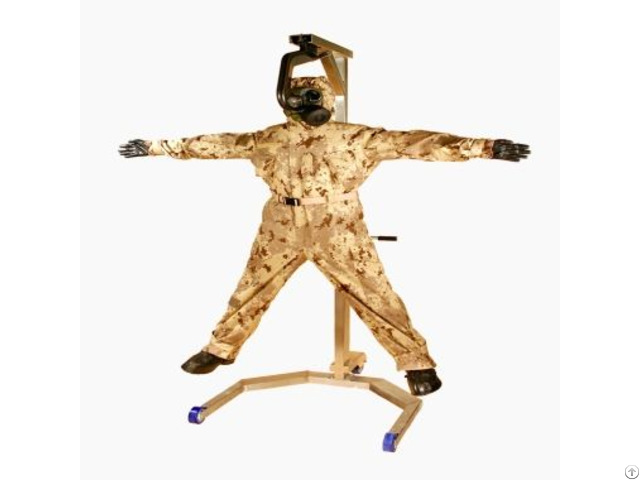

Chemical Protective Robotic Manikin Clothing Testing Equipment - China

Product Introduction

The Individual Soldier system was commissioned by Defence Research and Development Canada.

The second version of the mannequin system was manufactured and commissioned according to the requirements of DST Group Australia.

The system consists of a mannequin and an upper body head for testing chemical and biological protective clothing and headgear.

A mannequin is a full-size, articulated, carbon-composite body form that produces accurate anthropometric data.

It is lightweight, chemically resistant and capable of performing a range of specified motion protocols.

The only means of support were the hands, face and feet, which were tied to the foot boards.

The mannequin is mounted in an external drive frame.

The foot drive frame supports external actuators and provides 10 axes of motion.

Two lightweight actuators are installed inside the mannequin to generate sympathetic head movement.

The system can perform a test sequence of up to six hours in a chemically harsh environment, consisting of any combination of 10 pre-programmed actions.

Also included in the mannequin system is an interchangeable carbon composite upper body head form, designed as a portable stand-alone system for smaller test chambers and temporary environmental analysis tents, which has the same exact dimensions as the mannequin and can be interchanged directly in the drive frame.

This upper body form of the head is supported by the base of the head rather than the face.

The system provides users with fully computer-controlled head joints that can be combined with arm movements driven by the frame.

Both the upper body and the mannequin have soft, chemical-resistant elastomer skin that covers the entire head, neck, wrists, and waist of the mannequin.

This material was developed by i-bodi specifically for this application.

In addition, according to the test requirements, low-cost, high-flexibility disposable silicone leather has been developed as an alternative.

The house dosimeter holder in the form of a mannequin and upper body head collects the necessary data to evaluate the integrity of the test garment.

Standards

YY/T 0316-2016 GB/Z 42217-2022 GB/T 16294-2010 Product Advantages Designed for Military CB Testing: Specifically developed and commissioned by leading defense R&D organizations for the rigorous testing of military CB protective gear.

High Chemical Resistance: Constructed with chemically resistant materials suitable for operation in harsh chemical environments.

Realistic Movement Simulation: Full-size, articulated body with 10 axes of motion and internal actuators can simulate a wide range of realistic infantry movements and activities.

Long Duration Testing: Capable of performing test sequences lasting up to six hours in challenging environments.

Versatile Configuration: Includes both a full-size mannequin and an interchangeable, portable upper body head form for different testing needs and chamber sizes.

Accurate Anthropometry: Produces accurate anthropometric data, ensuring protective gear fits and performs realistically on the manikin.

Integrated Data Collection: Features a dosimeter holder for collecting crucial data on garment integrity and agent penetration.

Sophisticated Control: Fully computer-controlled system allows for precise and repeatable execution of complex motion protocols.

Durable and Realistic Skin: Features custom-developed soft, chemical-resistant elastomer skin.

Technical Parameters

Width range: 1-5cm; Stretch range: 30%-70%; Detection linearity: 0.8-1; Detection limit: 0.01%-0.1%; Fatigue life: no less than 200.000 cycles.
