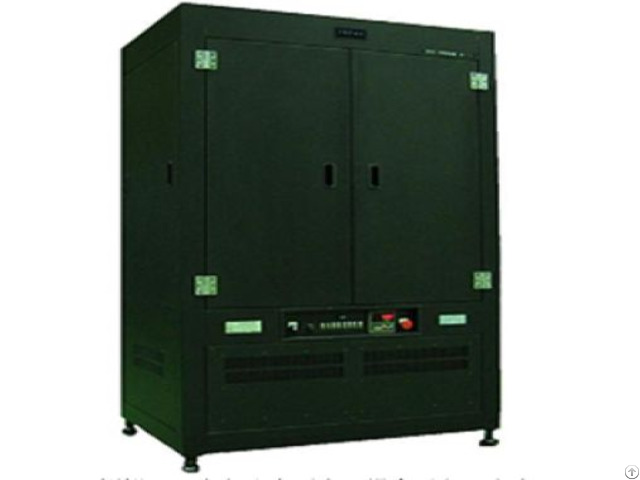

Photocatalysis Illumination Apparatus - China

Applicable standards:

JIS r1702 / New ceramics - Antibacterial activity test and antibacterial effect of antibacterial processed products under light irradiation JIS l1902 / Antimicrobial tests and antibacterial effects of textiles Purpose:

This machine is used for JIS r1702 / new ceramic antibacterial processing products under the light irradiation of antibacterial test and antibacterial effect, as well as JIS l1902 / fiber products antibacterial test and antibacterial effect of light irradiation device.

The sample was put into the device and irradiated with a certain intensity of ultraviolet light for a certain time to determine the light irradiation effect of the photocatalyst antibacterial processing products.

Not only can multiple samples be tested at once, but various lighting conditions can also be set.

Product Advantages:

Specifically Designed for Standardized Tests: Built to meet the light irradiation requirements of specific JIS standards (JIS R 1702 - JIS L 1902) for antibacterial testing.

Provides Controlled UV Exposure: Offers a consistent and quantifiable source of ultraviolet light.

Supports Photocatalyst Testing: Essential for activating photocatalytic materials to evaluate their antibacterial effectiveness under light.

Versatile for Different Materials: Applicable for testing antibacterial properties of ceramics, textiles, and other processed products under light irradiation.

Multiple Sample Testing: Capable of irradiating multiple samples simultaneously, improving testing efficiency.

Adjustable Lighting Conditions: Allows for setting various light intensities by changing lamp height and selecting the number of active bulbs.

Easy Lamp Height Adjustment: Features an electric lifting device with digital display for convenient and accurate lamp positioning.

Independent Lamp Control: Individual on/off switches for each lamp provide flexibility in setting lighting patterns or intensities.

Specification parameters:

Model: Model: STD IT-LL (Automatic lifting light) Light Source: BLB 20w (Made by Tochi Lilac) Number of lights: 1 / lamps X 8= 8 Light on/off mode: Each light switch independently Lighting accessories: No umbrella, color Lamp lifting device: electric lifting type (moving distance digital display 26 —— 700mm/1mm) Lamp shield plate: punched metal aluminum/removable The lowest position of the lamp: about 50mm from the sample tray mounting plate Sample plate: 90Φ X 20hmm Sample tray mounting plate: perforated metallic/black non-reflective coating Luminaire moving distance: 700mm below the sample mounting surface (actual moving distance; 30-700mm) Temperature in the tank: about 25℃+ 2 —— 3℃ (top/center of the sample tray, external ambient temperature 25℃) Installation site: air conditioning room, dark room Device size/weight: approx.

1200w X 860d X 2000hmm (including the shelf size) / 200kg Power supply: 100v, 60hz, single phase
