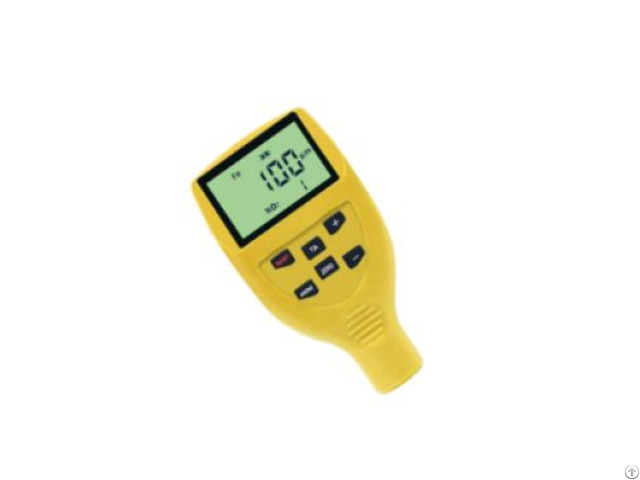

Coating Thickness Tester - China

Standard Coating Thickness Gauge complies with international standards including ASTM B499, ASTM D1400, ISO 2178, ISO 2360, and GB/T 4956, ensuring reliable measurements for industrial and laboratory applications.

Designed for non-destructive testing of non-magnetic coatings on ferromagnetic substrates (e.g., steel, iron), it meets the demands of automotive, manufacturing, and QC inspection sectors.

Product Advantages

Zero-Point Calibration

Simplifies setup with instant zero adjustment, eliminating baseline errors for consistent accuracy.

Vivid IPS Display

1.14" full-color IPS screen with intuitive touch controls for effortless navigation, even under bright lighting.

Curved Surface Mastery

Measures convex radii ≥5mm and concave radii ≥10mm, ideal for pipes, automotive panels, and contoured parts.

High-Sensitivity Probe

Proprietary sensor technology delivers rapid response (1μm resolution) and ±(3%H+1)μm precision.

Ultra-Portable Design

Compact 65g build with wrist strap for single-handed operation in tight spaces or field environments.

Extended Battery Life

10, 000 measurements per charge (8+ hours) for uninterrupted workflows.

Ample Data Storage

100-result memory with USB-C connectivity for quick data transfer to PCs/tablets.

Dual-Unit Flexibility

Toggle between μm and mil units for global standard compliance.

Rugged Durability

Operates in 0–40°C temperatures and withstands harsh industrial environments.

Cost-Effective Precision

Affordable entry-level pricing without compromising accuracy, backed by 3nh’s proprietary technology.

Product Features

Measurement Principle: Magnetic induction (Fe-base) for non-destructive coating thickness analysis.

Substrate Compatibility: Ideal for paint, powder coat, ceramic, chrome, copper, zinc, and anodized layers on iron/steel.

Probe Design: Integrated single-positioning probe ensures stable contact on flat or curved surfaces.

Resolution: 1μm for detecting even the thinnest coatings.

Measurement Range: 0–1250μm (0–49.2 mil) covers most industrial coating applications.

Accuracy: ±(3%H+1)μm (H = coating thickness) for reliable QC pass/fail decisions.

Display: IPS full-color screen with anti-glare coating for outdoor readability.

Connectivity: USB-C port for charging and data export.

Battery: Rechargeable lithium battery with 10, 000-scan capacity.

Ergonomics: Compact 107×50×20mm form factor with anti-slip texture.

Environmental Resistance: IP20 rating (non-waterproof) for dry indoor/outdoor use.

Technical Parameters

Specification Details

Model STDYT5100

Base Material Ferromagnetic (Fe-base)

Probe Type Integrated single-positioning

Resolution 1μm (0.04 mil)

Measurement Range 0–1250μm (0–49.2 mil)

Accuracy ±(3%H + 1)μm

Display 1.14" IPS full-color TFT

Interface USB-C (charging/data)

Storage 100 measurements

Battery 10, 000 scans per charge

Dimensions 107 × 50 × 20mm

Weight 65g (including wrist strap)

Operating Temp.

0–40°C (32–104°F)

Storage Temp.

-10–50°C (14–122°F)

Min.

Curvature Convex: 5mm / Concave: 10mm

Min.

Substrate Size 10 × 10mm

Units μm / mil (switchable)

Accessories Iron Calibration Substrate

Wrist Strap & Microfiber Cleaning Cloth

USB-C Charging Cable

User Manual & Calibration Certificate

Portable Printer, 5V-2A Power Adapter, Calibration Foils, Replacement Probe Tips
