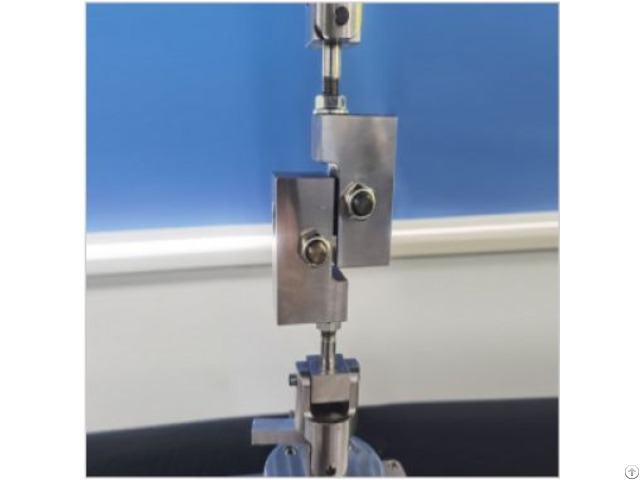

Coatings Shear Fatigue Tester - China

Standard

YY/T 0988.13-2017 (China): Specifies shear fatigue testing protocols for coatings on metallic substrates, including load ratios, frequency, and failure criteria.

ASTM F1160-17 (International): Defines methodologies for evaluating the mechanical performance of implant-coating interfaces under cyclic loading.

Product Advantages

Ultra-Precision Loading: Electromagnetic servo motor ensures backlash-free operation with 0.001 N shear force resolution.

Biorelevant Simulation: Integrated 37°C water bath system replicates physiological conditions for in vitro corrosion testing.

Universal Fixturing: Self-centering clamps accommodate substrates (10–50 mm diameter) and coatings (1–200 µm thickness).

High-Cycle Endurance: 10 million cycle capacity with ±0.05% load accuracy.

Compact Design: Benchtop footprint (500 × 450 × 700 mm) suits laboratory environments.

Regulatory Compliance: Pre-loaded YY/T 0988.13 protocols with automated data reporting for FDA/CE submissions.

Product Features

Electromagnetic Servo Actuator: 10 kN shear load capacity with programmable R=0.1–10 ratios.

Dual Sensor System: 0.01 N resolution shear force transducer + 0.001 mm LVDT displacement sensor.

Dynamic Load Control: 0.1–30 Hz frequency range with sine/square/random waveforms.

Thermal-Mechanical Bath: 37±0.5°C recirculating water system with anti-evaporation design.

High-Resolution Imaging: Built-in 5MP camera system for coating delamination analysis.

Safety Suite: Emergency stop, overload clutches, and water leak detection system.

Technical Parameters

Parameter Specification

Max.

Shear Force ±10.000 N (0.01 N resolution)

Frequency Range 0.1–30 Hz (0.01 Hz increments)

Load Ratio (R) 0.1–10 (adjustable)

Displacement Range ±2 mm (0.001 mm resolution)

Water Bath Temperature 37±0.5°C (PT1000 sensor)

Data Sampling Rate 10 kHz (synchronized across 8 channels)

Power Requirements 220V/110V ±10%, 50/60Hz, 1.500W

Dimensions (W×D×H) 500 × 450 × 700 mm

Weight 70 kg (net) / 80 kg (with water bath)

Noise Level <55 dB (A-weighted)

Standard Accessories

Shear Fixture Kit: Self-centering clamps (10–50 mm substrate compatibility) Coating thickness gauges (1–200 µm measurement range) Thermal-Mechanical Bath: 15L capacity with recirculating pump Corrosion-resistant titanium interior CoatingTest Pro Software: Automated S-N curve generation and adhesion failure analysis 21 CFR Part 11-compliant audit trail with blockchain timestamping Remote monitoring via iOS/Android app Operator Kit: Calibrated torque wrench set (0.1–10 Nm) Substrate alignment jigs (ASTM F1160 compliant) Calibration Bundle: NIST-traceable force calibration weights LVDT verification tool Safety Kit: Water leak detection system Acoustic enclosure with 25 dB noise reduction
