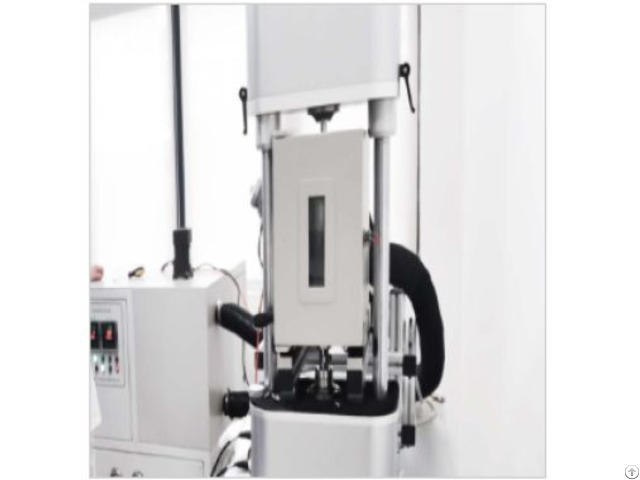

Dental Implants Fatigue Tester - China

Standard

ISO 14801: 2016: Specifies dynamic fatigue testing protocols for endosseous dental implants, including load ratios, frequency, and failure criteria.

YY/T 0521-2018 (China): Defines methodologies for evaluating the fatigue strength of dental implant-abutment complexes under cyclic loading.

Product Advantages

Electromagnetic Precision: Novel servo motor technology ensures backlash-free operation with 0.001 mm displacement resolution.

Biorelevant Simulation: Integrated 37°C water bath system replicates physiological conditions for in vitro corrosion testing.

Universal Fixturing: Adjustable angle clamps accommodate straight/angulated implants (0°–25° pre-set options).

High-Frequency Stability: 20 Hz operation with ±0.05% load accuracy across 2 million cycle tests.

Compact Design: Benchtop footprint (450 × 400 × 600 mm) suits laboratory environments.

Regulatory Compliance: Pre-loaded ISO 14801 protocols with automated data reporting for FDA/CE submissions.

Product Features

Electromagnetic Servo Actuator: 600 N dynamic load capacity with programmable R=0.1–10 ratios.

Dual Sensor System: 0.01 N resolution load cell + 0.001 mm LVDT displacement transducer.

Dynamic Load Control: 0.1–20 Hz frequency range with sine/square/random waveforms.

Thermal-Mechanical Bath: 37±0.5°C recirculating water system with anti-evaporation design.

High-Resolution Imaging: Built-in 2MP camera system for fretting corrosion analysis.

Safety Suite: Emergency stop, overload clutches, and water leak detection system.

Technical Parameters

Parameter Specification

Max.

Dynamic Load ±600 N (0.01 N resolution)

Frequency Range 0.1–20 Hz (0.01 Hz increments)

Load Ratio (R) 0.1–10 (adjustable)

Displacement Range ±5 mm (0.001 mm resolution)

Water Bath Temperature 37±0.5°C (PT1000 sensor)

Data Sampling Rate 10 kHz (synchronized across 8 channels)

Power Requirements 220V/110V ±10%, 50/60Hz, 1.200W

Dimensions (W×D×H) 450 × 400 × 600 mm

Weight 55 kg (net) / 65 kg (with water bath)

Noise Level <55 dB (A-weighted)

Accessories

Dental Implant Fixture Kit: Adjustable angle clamps (0°–25° pre-set options) Self-centering abutment adapters (3.0–6.5 mm compatibility) Thermal-Mechanical Bath: 10L capacity with recirculating pump Corrosion-resistant titanium interior FatigueMaster Pro Software: Automated S-N curve generation and fatigue limit calculation 21 CFR Part 11-compliant audit trail with blockchain timestamping Remote monitoring via iOS/Android app Operator Kit: Calibrated torque wrench set (0.1–10 Nm) Implant alignment jigs (ISO 14801 compliant) Calibration Bundle: NIST-traceable force calibration weights LVDT verification tool Safety Kit: Water leak detection system Acoustic enclosure with 25 dB noise reduction
