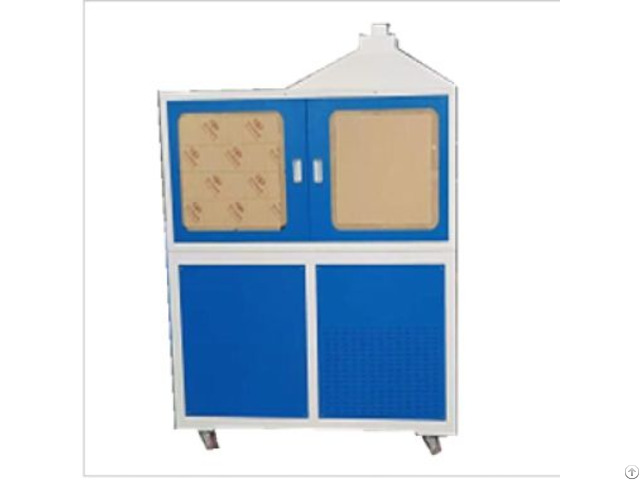

Conveyor Belt Drum Friction Testing Machine - China

Main Purposes of Conveyor Belt Drum Friction Testing Machine The conveyor belt drum friction testing machine has extensive application value in multiple fields.

Its main purposes include: Evaluating Conveyor Belt Performance This equipment is mainly used to evaluate the performance of conveyor belts under drum friction conditions, especially their anti - friction, anti - wear, and flame - retardant properties.

By simulating the friction conditions in actual working environments, it can test the durability and reliability of conveyor belts, providing data support for product optimization design.

Material Selection and R & D During material research and development, the conveyor belt drum friction testing machine can be used to screen materials with excellent wear - resistance and anti - friction properties.

By comparing the test results of different materials, it can provide a scientific basis for material selection and reduce product R & D costs.

Optimization Design Based on the test results, the structure and materials of conveyor belts can be optimized to improve their service life and performance.

At the same time, it can also provide improvement suggestions for drum design to reduce friction loss and energy consumption.

Scientific Research and Teaching In the field of scientific research, the conveyor belt drum friction testing machine can be used for research on friction and wear mechanisms, material surface modification, etc.

In teaching, this equipment can be used to cultivate students' practical abilities and scientific research qualities, improving the quality of teaching.

Technical Parameters： Overall power 11.2KW Power supply AC380V 50Hz three-phase five-wire system Drum motor power 11KW Drum material 45# steel, nitriding treatment Drum load speed 200±5r/min Micro blower power: 220V, 25W Blowing wind speed 2.0±0.1m/s; air flow rate can be adjusted.

Porous tube diameter: Φ40 (inner diameter), ventilation holes inner diameter Φ: 6mm 21 - spacing 13mm Porous tube and drum distance: 600mm Weight 900kg Dimensions Mechanical Cabinet 1400 * 860 * 1900mm Electronic Control Cabinet 1500 * 760 * 1700mm Apply tensioning force weights 343N weights five (a weight can be automatically applied to tensioning, 2-5 weights need to be manually applied to tensioning), automatic disconnection of the tensioning force, the automatic disconnection of the tensioning force, the automatic disconnection of the tensioning force.

Apply tension), automatic belt break detection Test time recording range 99 hours, 60 minutes and 60 seconds, digital display adjustable, set the time parameter value reaches the automatic shutdown.

Temperature measurement range: room temperature-400°C, automatic over-temperature detection and shutdown, temperature measurement accuracy: ±1°C.
