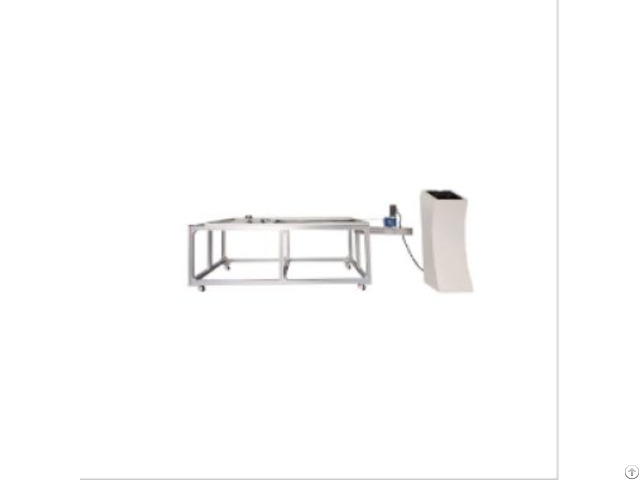

Cut Susceptibility Test Device - China

Standard

IEC 61730-2: Photovoltaic (PV) Module Safety Qualification – Requirements for Testing UL 1703: Flat-Plate Photovoltaic Modules and Panels CE Certification (Conformité Européenne)

Accessories Included

Testing Kit: 5x Diamond Indenters (10–50 μm tip radius).

10x Backsheet Sample Clamps (adjustable for 1–10 mm thickness).

Consumables: 1x Calibration Grade Abrasion Paper (100 grit).

5x Replacement Cutting Blades.

Documentation: Multilingual Quick-Start Guide (printed + digital).

Compliance Certificates for IEC/UL Standards.

Safety Gear: 2x Cut-Resistant Gloves (EN 388 Level 5).

1x Eye Protection Shield.

Software Suite: License key for ScratchTest Pro (Windows/macOS).

1-year free access to cloud-based abrasion analysis tools.

Technical Parameters

Parameter Specification

Tabletop Size 1.400mm (W) × 650mm (D)

Scratch Speed 120–180 mm/s (adjustable)

Traction Force 1–50N (0.1N resolution)

Speed Accuracy ±2% of setpoint

Power Supply 220V AC, 50/60Hz (single-phase)

Dimensions 1.600mm (W) × 800mm (D) × 1.200mm (H)

Weight 120 kg (net)
