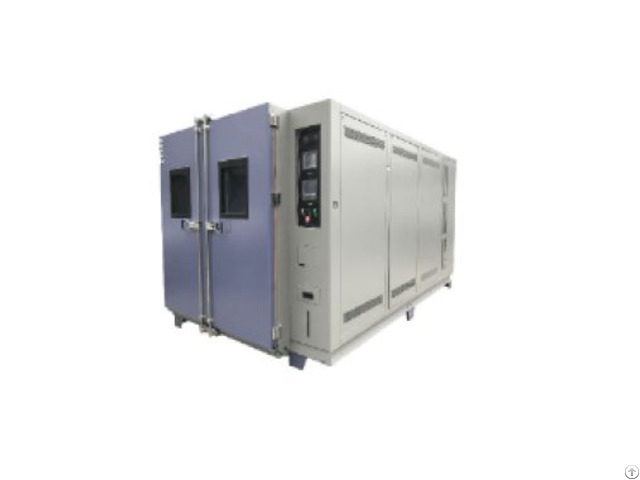

Photovoltaic Module Damp Heat Test Device - China

Standard

IEC 61215: Terrestrial Photovoltaic (PV) Modules – Design Qualification and Type Approval UL 1073: Standard for Safety for Enclosures for Electrical Equipment ISO 16750-4: Road Vehicles – Environmental Conditions and Testing for Electrical and Electronic Equipment CE Certification (Conformité Européenne)

Accessories Included

Testing Kit: 4x universal sample racks (adjustable for batteries/PV modules/PCBAs).

10x humidity sensor calibration capsules.

Software Suite: License key for EnviroTest Pro (Windows/Linux).

1-year free access to cloud-based test report generator.

Calibration & Safety: NIST-traceable temperature/humidity logger.

Emergency eyewash station (portable).

Maintenance Kit: Spare heating elements and refrigerant filters.

Chamber cleaning solution (non-corrosive).

Documentation: Multilingual quick-start guide (printed + digital).

Compliance certificates for IEC/UL/ISO standards.

Technical Parameters

Parameter Specification

Temperature Range 30°C to 85°C (operational)

Temperature Stability ±1°C (at 85°C setpoint)

Temperature Uniformity ≤±2°C (empty chamber)

Humidity Range 30%–95% RH (non-condensing)

Humidity Stability ±2.5% RH (at 85% RH)

Chamber Volume 500L (standard), expandable to 1.500L

Power Supply 380V/415V 3-phase, 50/60Hz

Dimensions 1.200mm (W) × 1.800mm (D) × 2.000mm (H)

Weight 800 kg (net) / 1.200 kg (gross)
